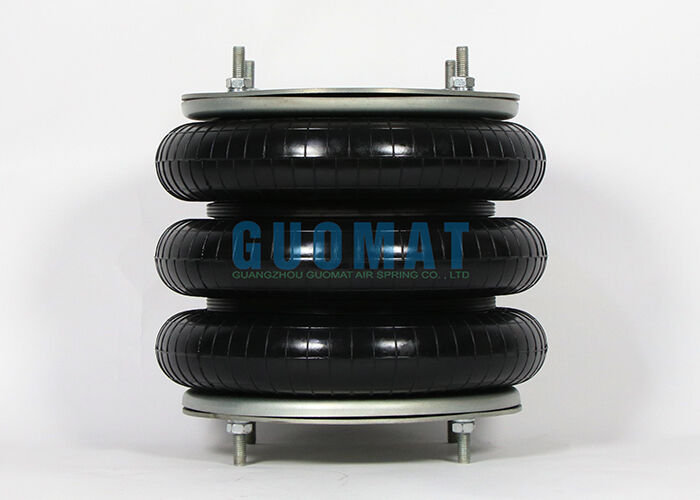

12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	3B12X3T

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	6पीसी
मूल्य:	US$169.9-199.9/PC
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के अनुसार
प्रसव के समय:	3-7 कार्य दिवस
भुगतान शर्तें:	एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता:	1000 पीसी/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

नाम:	रबर एयर स्प्रिंग	प्रमाणीकरण:	आईएसओ TS15949
अनुकूलता:	सार्वभौमिक	तापमान:	-40℃+70℃
सामग्री:	रबर और स्टील	धौंकनी संख्या:	12''X3
संयोग:	3	फायरस्टोन:	W01R584062
प्रमुखता देना:	12 inch triple convoluted air spring , Firestone suspension air isolator , W01-R58-4062 air spring bellow

12" x 3 Triple Convoluted Suspension Air Spring Bellow W01-R58-4062 Firestone Air Isolator

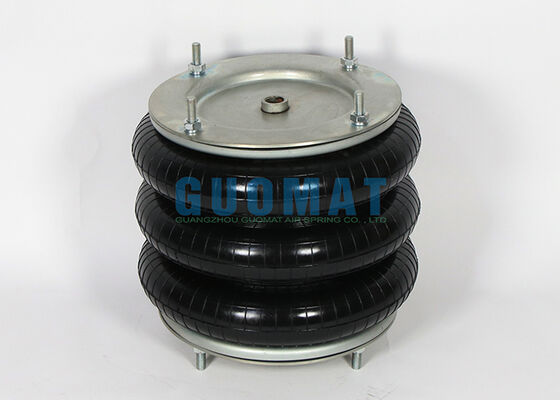

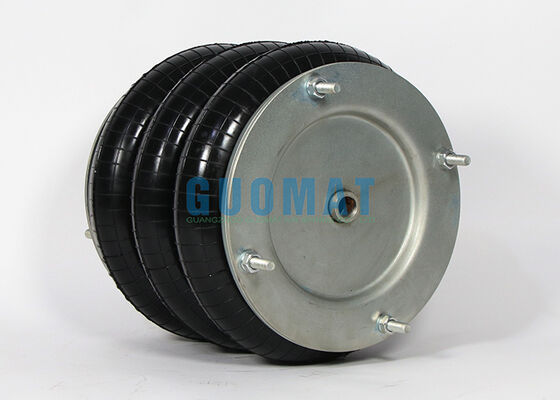

GUOMAT 3B12X3T is a heavy-duty triple convoluted rubber air spring designed as a direct replacement for Firestone W01-R58-4062 air spring bellows. Manufactured from premium natural rubber, high-strength reinforced cord fabric, and durable steel components, this air spring provides exceptional load-bearing capacity, vibration isolation, and shock absorption for industrial equipment and suspension systems.

The triple convoluted design offers a greater working stroke and higher vertical travel than single or double convoluted air springs, making it an ideal choice for applications requiring increased flexibility, stable load support, and excellent vibration control. The air spring automatically adjusts to varying loads while maintaining consistent operating height, helping improve equipment performance and reduce mechanical stress.

Product Specifications

Type: Suspension Air Spring

Model: 3B12X3T

Cross-Reference Part Numbers

Firestone: W01-R58-4062 / WO1-R58-4062

Firestone: W01 R58 4062 / WO1 R58 4062

Firestone: W01R584062 / WO1R584062

Contitech: FT412-32DS / FT 412-32DS / FT 412-32 DS

Dunlop: SP1542 / SP 1542

Norgren: M/31123 / M 31123 / M 31123

Parker: 9109051

Technical Specifications

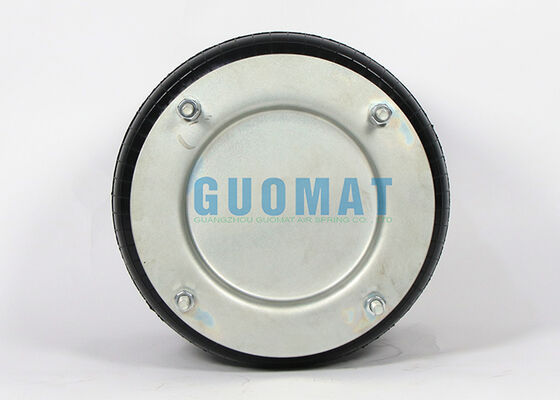

Cover plate diameter: 260mm

Air vent: G1/2

Threaded hole: M8

Number of threaded holes: 4

Center distance between threaded holes: 232mm

Maximum outer diameter: 330mm

Minimum height: 100mm

Maximum height: 430mm

Pressure and Height Performance Data

Height H(mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol. V(cm³)
100	2165	2891	3610	4332	5052	5773	7948
150	1932	2578	3225	3868	4509	5152	11318
200	1704	2277	2844	3413	3993	4561	14685
250	1462	1951	2439	2936	3425	3921	17360
300	1193	1595	1998	2397	2800	3202	18982
350	924	1231	1539	1851	2159	2469	20046
400	648	862	1081	1298	1513	1731	20832
430	483	645	805	967	1126	1286	21310
