6" Diameter Norgren Air Spring M/31062 Industrial Air Bellows For Spinning Machine

उत्पाद विवरण:

उत्पत्ति के प्लेस:	गुआंग्डोंग, चीन
ब्रांड नाम:	NORGREN
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	एम/31062

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	6पीसी
मूल्य:	विनिमय योग्य
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के अनुसार
प्रसव के समय:	2-8 कार्य दिवस
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, एल/सी
आपूर्ति की क्षमता:	1000 पीसी/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

सामग्री:	प्राकृतिक रबर+एल्यूमीनियम	रंग:	काला
समारोह:	आघात अवशोषण	संचालन:	गैस से भरे
प्रोडक्ट का नाम:	नॉरग्रेन एयर बेलो	नोरग्रेन:	एम/31062
संकल्पों की संख्या:	2	वज़न:	2.2 किलो
प्रमुखता देना:	6 inch Norgren air spring , industrial air bellow spinning machine , M/31062 air spring with warranty

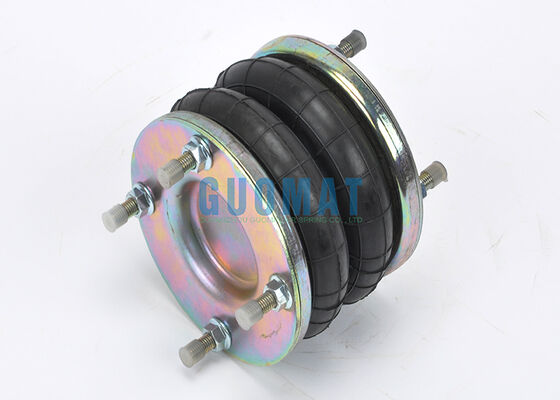

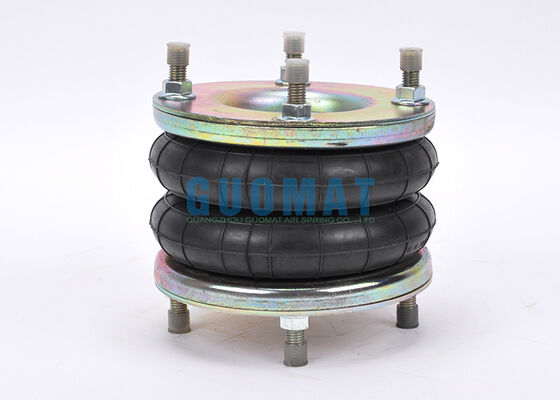

Norgren M/31062 Industrial Air Spring

The Norgren M/31062 is a high-performance double convoluted industrial air bellows designed for vibration isolation, lifting, and tension control applications in spinning and textile machinery.

With a 6-inch nominal diameter and 115 mm stroke, this original Norgren air spring provides stable force output, smooth motion, and excellent shock absorption during continuous machine operation.

Widely used in spinning machines, winding systems, textile production lines, and other precision industrial equipment, the M/31062 air spring helps reduce vibration transmission, improve machine stability, and extend equipment service life. Its reinforced rubber bellows and steel mounting structure ensure reliable performance under long-term cyclic loading conditions.

Product Specifications

Technical Data

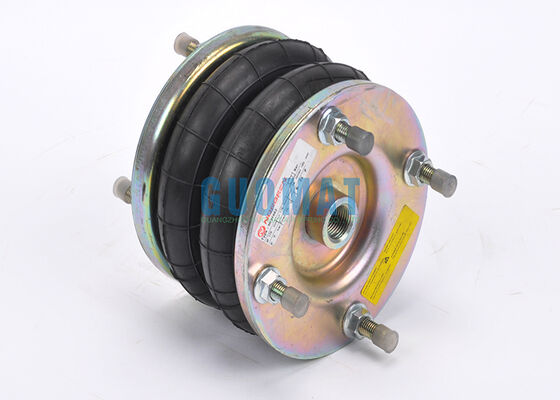

Top cover plate: 153.5 mm diameter with four M10 threaded holes (127 mm bolt center distance)

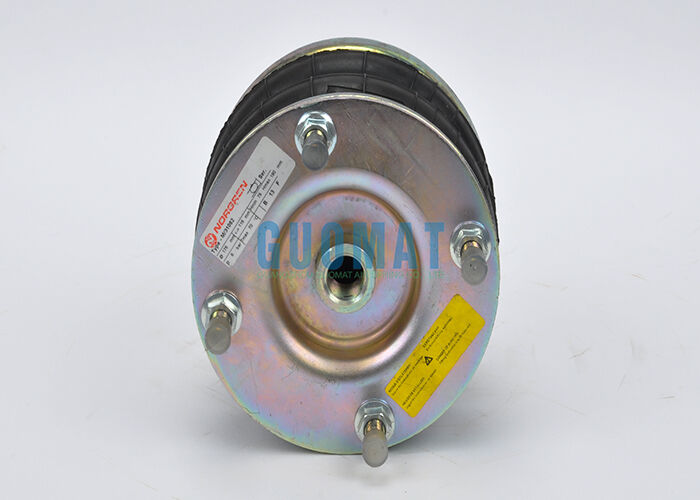

Bottom cover plate: 153.5 mm diameter with four M10 threaded holes (127 mm bolt center distance)
Air port specification: G1/2
Maximum outer diameter: 175 mm
Maximum height: 190 mm
Minimum height: 75 mm

Performance Data - Force and Spring Characteristics

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force (Load) KN	2.7	3.7	4.7	5.7	6.7	7.8	2
Spring Rate N/cm	650	830	1015	1185	1360	1530
Natural Frequency f0 Hz	2.5	2.4	2.3	2.3	2.3	2.2

Performance Data - Height vs Pressure

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H(mm) 170	2.2	3	3.8	4.7	5.6	6.5	2.1
Height H(mm) 150	2.8	3.9	4.9	6	7.1	8.2	1.9
Height H(mm) 130	3.5	4.7	5.9	7.1	8.4	9.7	1.7
Height H(mm) 110	4.1	5.4	6.8	8.2	9.6	11.1	1.4
Height H(mm) 90	4.7	6.3	7.9	9.5	11.1	12.8	1.1
