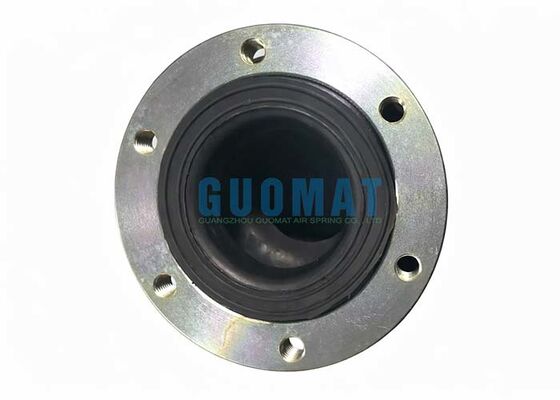

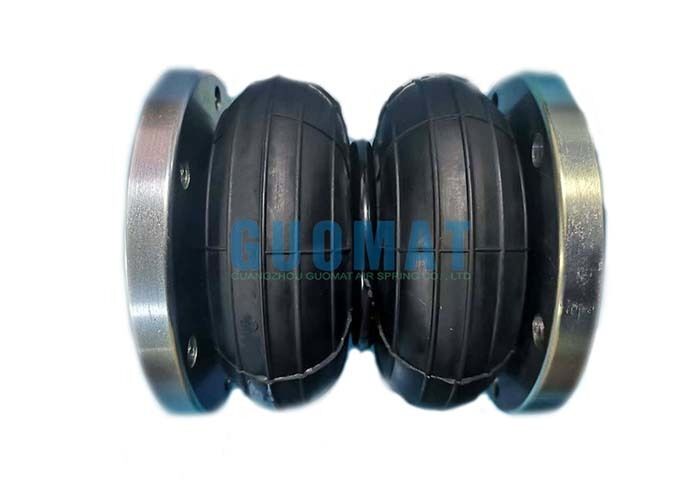

2H160166 Double Convoluted Industrial Air Spring 108mm Stroke Air Shock Suspension

उत्पाद विवरण:

उत्पत्ति के प्लेस:	गुआंग्डोंग, चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	2एच160166

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	6पीसी
मूल्य:	$99.9-159.9/pc
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के अनुसार
प्रसव के समय:	2-8 कार्य दिवस
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, एल/सी
आपूर्ति की क्षमता:	1000 पीसी/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

सामग्री:	रबर + स्टील	आवेदन:	औद्योगिक उपकरण
नमूना:	उपलब्ध	परिवहन पैकेज:	100000/पीसी/महीना
संचालन:	गैस से भरे	गोमेट:	2एच160166
प्रमुखता देना:	double convoluted industrial air spring , 108mm stroke air shock suspension , industrial air spring with warranty

2H160166 Double Convoluted Industrial Air Spring 108mm Stroke Air Shock Suspension

Product Overview

The 2H160166 air spring features a double convoluted (2H type) design, providing higher load capacity and improved vertical stability compared with single-convoluted structures. Using compressed air as the elastic medium, it delivers smooth motion, effective vibration isolation, and adjustable stiffness for various industrial applications.

Technical Specifications

Top flange diameter	160mm
Top threaded holes	6pcs XM10
Center distance between top threaded holes	135mm
Bottom flange diameter	146mm
Bottom threaded holes	6pcs XM10
Center distance between bottom threaded holes	135mm
Maximum outer diameter	175mm
Natural height	166mm
Minimum height	82mm
Maximum height	190mm
Stroke	108mm

Load Capacity & Performance Data

Installation Height (mm)	Carrying Capacity at Inflation Pressure (MPa)							Volume at 0.7MPa (dm³)
	0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.7 MPa	0.8 MPa
82	364	538	713	892	1071	1251	1430	0.86
116	262	397	537	674	815	950	1095	1.27
150	190	290	391	490	597	700	802	1.64
166	149	237	325	413	502	593	684	1.77
190	76	128	180	233	287	342	398	1.92
201	23	55	83	111	148	183	220	1.95

Stiffness and Frequency at Design Height
Inflation Pressure (MPa)	0.2	0.3	0.4	0.5	0.6	0.7	0.8
Vertical Stiffness (Kg/cm)	39	54	72	89	107	125	138
Natural Frequency (Hz)	2.56	2.4	2.35	2.33	2.31	2.3	2.25
Natural Frequency (cpm)	154	144	141	140	139	138	135

Key Features

High Load Capacity Double Convoluted Design: The two-layer bellows structure increases effective air volume and provides improved load-bearing capability while maintaining compact installation height.
108mm Effective Stroke: Provides sufficient vertical travel for vibration absorption, machine leveling, and short-stroke linear actuation.
Durable Reinforced Rubber Bellows: Manufactured from multi-layer cord-reinforced elastomer to ensure resistance to fatigue, cracking, and pressure cycling.
Adjustable Stiffness and Height: Air pressure can be adjusted to fine-tune load support, vibration isolation performance, and operating height.
Maintenance-Free Operation: Unlike mechanical springs, air springs require minimal maintenance and provide longer service life under proper operating conditions.

Product Drawing
