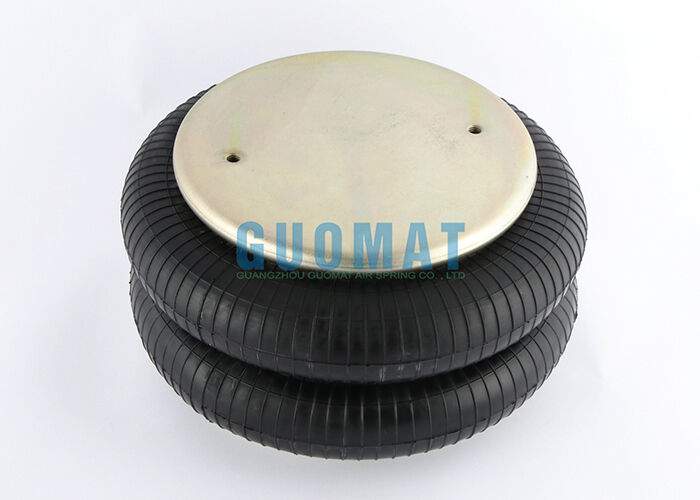

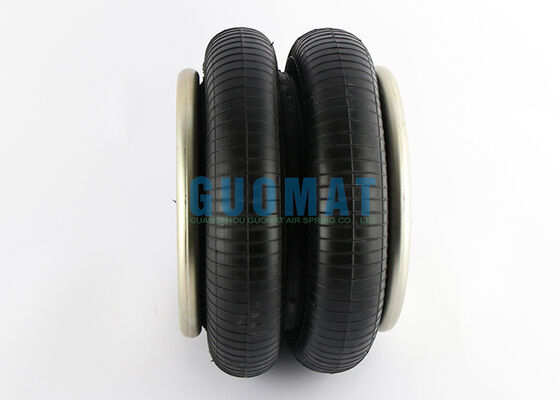

2B6330 Double Convoluted Suspension Air Bags FD330-22 363 Contitech Air Spring Replacement

उत्पाद विवरण:

उत्पत्ति के प्लेस:	गुआंग्डोंग, चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	2बी6330

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	6pcs
मूल्य:	$59.9-69.9/pc
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की जरूरत के रूप में
प्रसव के समय:	2-8 काम के दिन
भुगतान शर्तें:	एल/सी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता:	1000PCS/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

वसंत सामग्री:	रबर+स्टील	गारंटी:	1 वर्ष
उत्पाद सुविधा:	इन-सीटू स्थापना	प्रकार:	गैस से भरे
पद:	सार्वभौमिक	फायरटसोन:	W01-358-7180
शुभवर्ष:	2बी12-425	कंपन:	वीएसपी2बी22आर7180
प्रमुखता देना:	FD330-22 suspension air spring replacement , Contitech double convoluted air bags , 2B6330 heavy-duty suspension air spring

2B6330 Double Convoluted Suspension Air Bags FD330-22 363 Contitech Air Spring Replacement

Product Specifications

Item	Value
Model No.	2B6330
Type	Air Spring
Warranty	12 Months
Truck Model	Heavy Duty Truck
Color	Black
Place of Origin	Guangzhou, China
Certification	ISO/TS16949:2009
Material	Rubber + Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Auto/Truck parts
Application	Auto Suspension Systems

Cross-Reference Part Numbers

Firestone W01-358-7180
Firestone Style 22
Contitech FD330-22 363
Goodyear 2B12-425
Goodyear 2B12-311
Goodyear 578-92-3-309
Triangle 6313
Triangle 4363
Airkraft 115061
Airkraft 3B-356
Vibracoustic VSP2B22R7180
El Ride 8030190
Kwiklok/Todco (Jifflox)
Leland Sc2075
Navistar 1685179C1
Hendrickson 1VA1816
Ridewell 1003587180C
SAF Holland 57007180
Watson & Chalin AS01541G/01881F
Peerless 0550 00001

Technical Data

Parameter	Value
Top Cover Plate Diameter	231mm
Bottom Cover Plate Diameter	231mm
Gas Hole / Air inlet	1/4NPTF
Rubber Bellows MAX Diameter	325mm
The Working Stroke	MAX 305 mm to MIN 81 mm
Screw Center Distance of Top Cover Plate	157mm
Screw Center Distance of Bottom Cover Plate	157mm
Screw and Air Hole Distance of Top Cover Plate	73mm

Applications

The air spring is suitable for a wide range of vibration damping and shock absorption applications, including:

Automotive Industry: steering damping, engine vibration isolation, belt tensioner damping, and driver seat suspension systems in commercial vehicles
Household Appliances: vibration control for washing machines and similar equipment
Bicycle Systems: special shock absorption applications for bicycles
Commercial Lawn Equipment: vibration damping for commercial lawn mowers
Medical Equipment: vibration isolation applications in wheelchairs and related medical devices

GUOMAT Double Convoluted Rubber Air Spring Reference

GUOMAT NO.	OEM NO.	Gas Hole	Rubber Bellow (mm)	The Stroke (mm)
2B4060	FD 40-10	G1/8	125	145
2B7070	W01-095-0111	G1/4	146	162
2B12020	W01-358-7325	1/4NPTF	203	75-230
2B8X4	W01-358-7325	M12X1.5	189	177
2B5020	FD 120-17	G3/4	215	75-230
2B5020D	W01-M58-6353	G1/4	215	75-230
2B5235	W01-M58-7894	ZG1/2	224	210
2B6926	W01-358-6926	1/4NPTF	224	75-260
2B6910P34	FD200-19	G3/4	224	75-260
2B6910	W01-358-6910	1/4NPTF	224	75-260
2B6902	W01-358-6902	1/4BSP	224	75-260
2B6927	FD 200-25 453	1/4NPT	262	81-325
2B6943	FD 200-25 426	1/4NPTF	262	79-325
2B6946	FD 200-25 463	1/4NPTF	262	95-325
2B6945	FD 200-25 427	1/4NPTF	262	79-325
2B7679	W01-M58-7679	1/4NPTF	262	240
2B6948	W01-358-6948	1/4NPTF	232.5	235
2B6951	W01-358-6951	1/4NPTF	232.5	240
2B6952	FD 200-25	1/4NPTF	232.5	240
2B6944	FD 220-25 454		262	95-325
2B6891	FD 200-19	M14X1.5	232.5	232
2B6330	FD 330-22 363	1/4NPTF	325	81-305
2B6330A	W01-358-0226	G1/2	325	81-305
2B12X2	FD 412-18	G1/2	300	186
2B7400	FD 330-22 313	G1/4	325	81-305
2B7405	W01-358-7405		325	81-305
2B7406	W01-358-7406	1/4NPT	325	104-305
2B7545	W01-358-7424	1/4NPT	298	81-305
2B7550	W01-358-7550		343	104-363
2B7555	FD 331-26 480		343	104-363
2B53022	W01-358-7136	Rc1 1/4	385	90-300
2B5383	W01-358-7557	1/4NPT	353	104-391
2B53035	FD530-35 530	3/4NPT	406	104-391
