| उत्पत्ति के प्लेस: | गुआंग्डोंग, चीन |
| ब्रांड नाम: | GUOMAT |
| प्रमाणन: | ISO/TS16949, ISO9001 |
| मॉडल संख्या: | 2बी12340 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | $139.9-169.9/PC |
| पैकेजिंग विवरण: | मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के अनुसार |
| प्रसव के समय: | 5-8 कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 1000 पीसी/सप्ताह |
| संरचना: | डबल सजा हुआ | ट्रेडमार्क: | गोमेट |
|---|---|---|---|
| गुणवत्ता: | उच्च गुणवत्ता | प्रकार: | निकला हुआ किनारा प्रकार एयर स्प्रिंग |
| गारंटी: | 12 महीने | सामग्री: | रबर और स्टील |
| शुभवर्ष: | 2बी12-340/578-92-3-309 | फायरस्टोन: | W01-358-7124 |
| प्रमुखता देना: | Goodyear air suspension spring,RV rubber air bags,air spring with warranty |
||

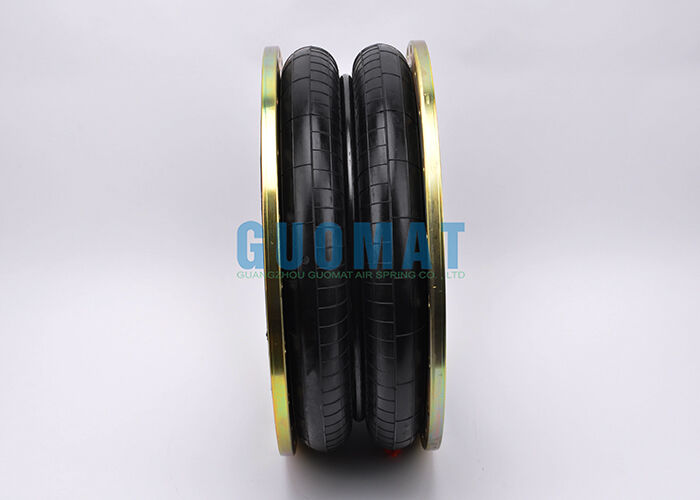

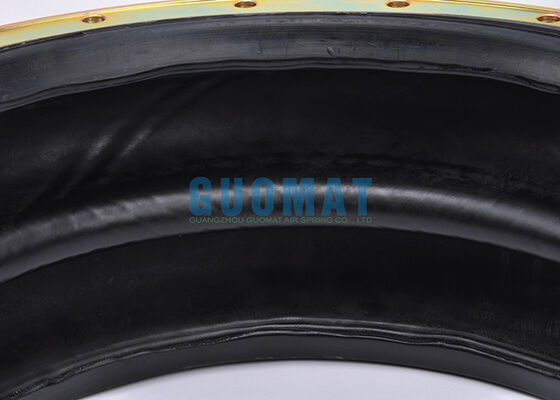

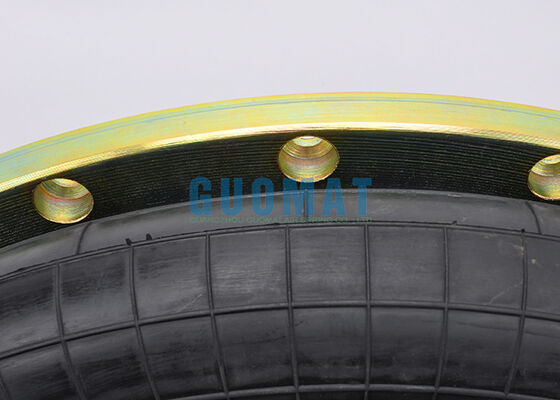

The 2B12-340 Goodyear Air Suspension Air Spring is a high-quality replacement component designed for recreational vehicles, providing superior ride comfort and vehicle stability.
Air suspension systems utilize compressed air within air springs instead of traditional leaf springs to support the vehicle body. This advanced technology enables automatic leveling and height adjustment, offering numerous benefits including enhanced ride comfort, reduced vibration and noise, protection of chassis and cargo, and automatic vehicle stability based on load variations. Widely used in trucks, buses, trailers, RVs, and modified vehicles, air suspension significantly improves driving safety and handling performance.
Brand: GUOMAT
Model Name: 2B12340
Material: Rubber + Steel
Warranty: 1 Year
Type: Convoluted Air Spring
| Goodyear Part Number | 2B12-340 / 2B 12-340 / 2B12 340 |
| Goodyear Bellows Number | 578-92-3-309 / 578 92 3 309 / 578923309 |
| Firestone Part Number | W01-358-7124 / W01 358 7124 / W013587124 |
| Firestone Bellows Number | 22C |
| Replaces MCI | 12C-3-52 |
| Replaces PREVOST | 63-0185 |
| Mounting Interface | |
| Flange Plate Diameter | 9.78 in |
| Bolt Circle Diameter (BCD) | 8.94 in |
| Bolts | 8 pieces, specification 5/16-18 UNF-2A |
| Height & Stroke | |
| Minimum Height | 3.4 in |
| Maximum Height | 10.9 in |
| Total Stroke | 7.5 in |
