2B12-307 Goodyear Suspension Air Spring FD 330-22 318 Contitech Air Shock Absorber

उत्पाद विवरण:

उत्पत्ति के प्लेस:	गुआंग्डोंग, चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949, ISO9001
मॉडल संख्या:	2बी7403

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1
मूल्य:	$59.9-69.9/pc
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के अनुसार
प्रसव के समय:	5-8 कार्य दिवस
भुगतान शर्तें:	एल/सी, डी/ए, डी/पी, वेस्टर्न यूनियन
आपूर्ति की क्षमता:	1000 पीसी/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

निलंबन प्रणाली:	एयर स्प्रिंग सस्पेंशन	गुणवत्ता:	100 % परीक्षण किया
ट्रेडमार्क:	गोमेट	गारंटी:	12 महीने
सामग्री:	प्राकृतिक रबर	शुभवर्ष:	2बी12-307
ContiTech:	एफडी 330-22 318	फायरस्टोन:	W01-358-7403
प्रमुखता देना:	Goodyear suspension air spring , Contitech air shock absorber , FD 330-22 air spring

2B12-307 Goodyear Suspension Air Spring FD 330-22 318 Contitech Air Shock Absorber

Product Features

Brand: GUOMAT
Model Number: 2B7403
Material: Rubber + Steel
Warranty: 12 Months
Convolutions: Double

Compatible Models

Fits Firestone: W01-358-7403

Fits Firestone: 22

Fits Contitech: FD 330-22 318

Fits Goodyear: 2B12-307

Fits Goodyear: 2B12-433

Fits Goodyear: 2B12-445

Fits Goodyear: 578-92-3-309

Fits Granning: 2725

Fits Hendrickson: S2883

Fits Hendrickson: S1159

Fits Hendrickson: NA1060

Fits Hendrickson: QS16AX

Fits Hendrickson: B-12514-001

Fits R&S Truck Body: 1040201

Fits Ridewell: 1003587403C

Fits Eatson&Chalin: AS-0007

Fits Brake&Wheel: M3507

Fits E.R.F: 1426481

Fits Dayton: 3547403

Fits Leland: Sc2021

Fits Navistar: 554787C1

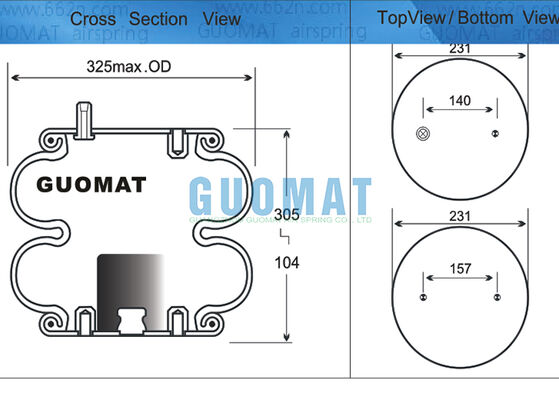

Technical Specifications

Cover Plate Dimensions
Top Cover Plate Diameter	231 mm
Screw Center Distance of Top Cover Plate	140 mm
Bottom Cover Plate Diameter	231 mm
Screw Center Distance of Bottom Cover Plate	157 mm

Rubber Bellow Specifications
Rubber Bellow Maximum Diameter	325 mm
Minimum Height	104 mm
Maximum Height	305 mm
Bellows Structure	Double Convoluted

Product Overview

Air springs in engineering transport vehicle suspension systems are primarily used for load support, shock absorption, and vehicle height adjustment. When a vehicle is heavily loaded, unloaded, or experiences frequent changes in road conditions, the air springs automatically adjust the internal air pressure to match the load, maintaining suspension stiffness within a reasonable range. This significantly improves ride stability and reduces damage to the chassis, cargo, and critical components from bumps and impacts. Simultaneously, air springs can automatically level the vehicle height, improving passability and handling stability, effectively enhancing the safety, comfort, and lifespan of engineering transport vehicles under complex operating conditions.
