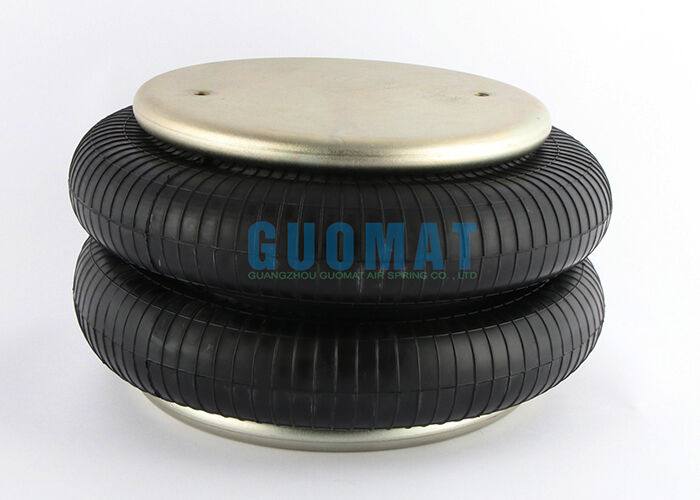

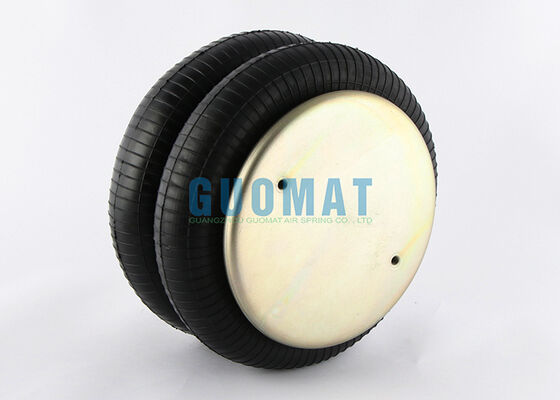

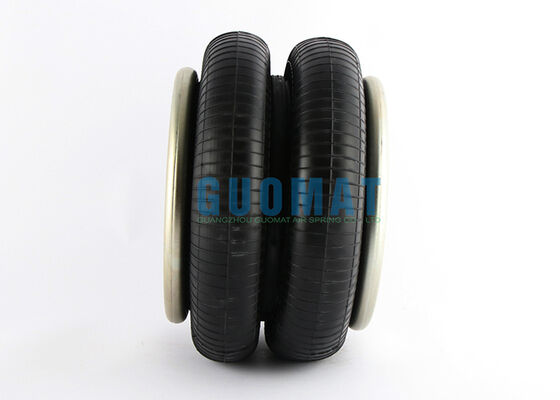

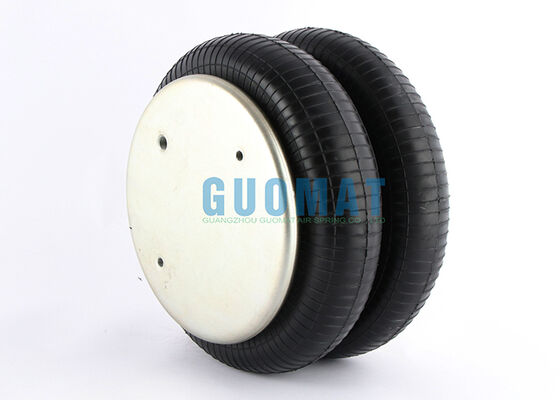

Light Truck Suspension Air Shock W01-358-6956 Firestone Double Convoluted Air Spring

उत्पाद विवरण:

उत्पत्ति के प्लेस:	गुआंगज़ौ, चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	2बी6956

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	5PCS
मूल्य:	USD59.9-69.9/PC
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के रूप में
प्रसव के समय:	3-7 कार्य दिवस
भुगतान शर्तें:	एल/सी, टी/टी, वेस्टर्न यूनियन या अन्य
आपूर्ति की क्षमता:	1000pcs/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

मॉडल नाम:	निलंबन एयरबैग	गुणवत्ता:	100 % परीक्षण किया
परिवहन पैकेज:	मजबूत डिब्बों	बिक्री के बाद सेवा:	12 महीने
प्रकार:	गैस से भरे	रंग:	काला
पद:	पिछला	प्रयोग:	अमेरिकी ट्रक के लिए
प्रमुखता देना:	Light Truck Air Spring Suspension , Firestone Double Convoluted Air Spring , W01-358-6956 Air Shock

Light Truck Suspension Air Shock W01-358-6956 Firestone Double Convoluted Air Spring

Brand: GUOMAT
Model Number: 2B6956
Material: Rubber and Steel
Warranty: 12 Months
Type: Suspension Spring
Car Model: AMERICAN PICK-UP
Position: Rear
Sample: Available
Payment Term: T/T
Operation: Gas-filled
Port: Guangzhou

OEM Number

Firestone Air Spring: W01-358-6956
Firestone Air Spring: W01 358 6956
Firestone Air Spring: W013586956
Firestone Air Spring: WO1-358-6956
Firestone Air Spring: WO1 358 6956
Firestone Air Spring: WO13586956

Blind nuts, 1/4 NPT
W01-358-6955 / W01 358 6955 / W013586955

Blind nuts, 3/4 NPT
W01-358-6956 / W01 358 6956 / W013586956

Rubber bellows only
W01-358-0048 / W01 358 0048 / W013580048

Socket head aluminum bead rings (bolts, nuts, washers not included, use cap screws)
W01-358-6833 / W01 358 6833 / W013586833

Technical Data

Specification	Value
Maximum Diameter @ 100 PSIG (inches)	6.5
Maximum Height (inches)	7
Maximum Stroke (inches)	4
Minimum Usable Height (inches)	3
Force @ 80PSI at Stroke of 1 Inch (pounds)	1612
Force @ 80PSI at Stroke of 3 Inch (pounds)	1194
Force @ 80PSI at Stroke of Maximum Stroke (pounds)	921
Bead plate Type	1
Blind Nut Centers (inches)	1.75
Design Height	6
Load (at Design Height) at: 40 psig (pounds)	566
Load (at Design Height) at: 60 psig (pounds)	871
Load (at Design Height) at: 80 psig (pounds)	1194
Natural Frequency (@80 psig) (cpm)	129
% of Isolation at Forced Frequency 400 CPM	87.9
% of Isolation at Forced Frequency 800 CPM	97.2
% of Isolation at Forced Frequency 1500 CPM	99.2

Advantages of Installing Air Springs in Truck Suspension

Cargo Protection: Excellent shock absorption significantly filters road impacts, greatly reducing damage to high-end goods such as precision instruments and fragile items during transport.
Enhanced Safety: Improves vehicle stability and shortens braking distance. Automatically maintains vehicle height, ensuring good visibility and maneuverability whether empty or heavily loaded.
Efficient Operation: Automatic vehicle height adjustment facilitates quick and easy docking at loading docks, greatly improving loading and unloading efficiency. The system is also lighter, contributing to increased payload capacity.
Economical and Durable: Effectively protects the vehicle chassis, extending its service life. More importantly, it promotes more even tire wear, significantly extending tire life and saving long-term operating costs.
