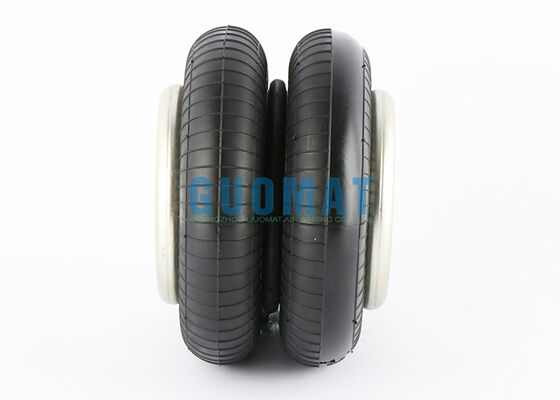

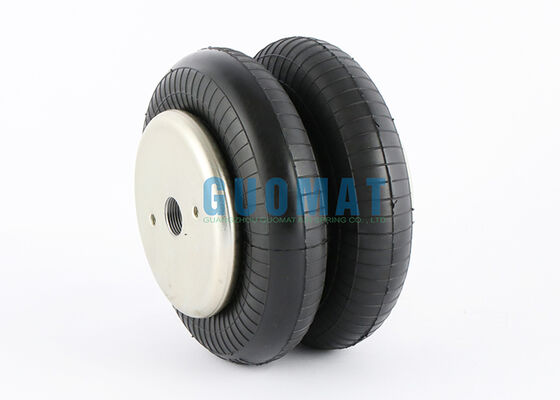

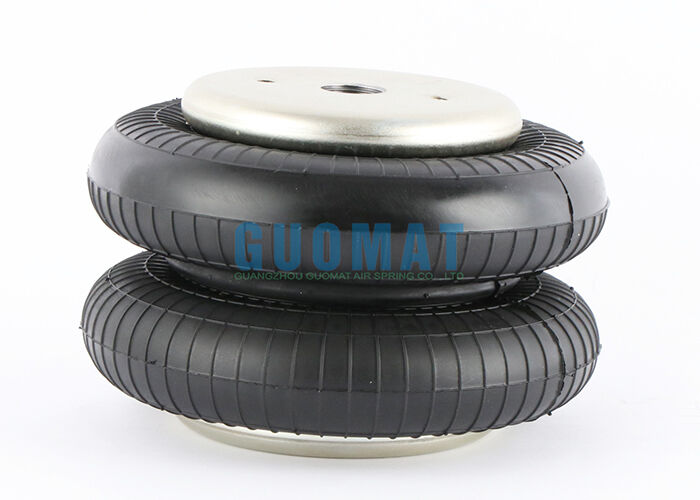

FD 120-17 Contitech Suspension Air Spring 2B-181/113053 Airkraft Air Shock Absorber

उत्पाद विवरण:

उत्पत्ति के प्लेस:	गुआंगज़ौ, चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	2B12017

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	5PCS
मूल्य:	USD59.9-69.9/PC
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के रूप में
प्रसव के समय:	3-7 कार्य दिवस
भुगतान शर्तें:	एल/सी, टी/टी, वेस्टर्न यूनियन या अन्य
आपूर्ति की क्षमता:	1000pcs/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

प्रोडक्ट का नाम:	निलंबन वायु वसंत	गुणवत्ता:	100 % परीक्षण किया
परिवहन पैकेज:	मजबूत डिब्बों	बिक्री के बाद सेवा:	12 महीने
प्रकार:	गैस से भरे	रंग:	काला
ContiTech:	एफडी 120-17	MOQ:	4 पीस
प्रमुखता देना:	Contitech suspension air spring , Airkraft air shock absorber , 2B-181 air spring replacement

FD 120-17 Contitech Suspension Air Spring 2B-181/113053 Airkraft Air Shock Absorber

Air suspension springs are rubber airbags that use compressed air as the working medium, replacing traditional steel springs in vehicle damping systems.

Height Adjustability: By inflating and deflating the airbag, the vehicle's height and ground clearance are automatically adjusted.
Adaptive Stiffness: Air pressure automatically changes with load, maintaining the same cushioning effect whether fully loaded or unloaded.
Active Control: Working with sensors and electronic control systems, it can adjust the stiffness mode in real time (such as switching between sport and comfort modes).

Brand: GUOMAT

Model Number: 2B12017

Material: Rubber and Steel

Warranty: 12 Months

Compatible Replacement Parts

Contitech: FD120-17
Contitech: FD 120-17
Contitech: FD120-17 CI
Contitech: FD 120-17 CI
Contitech: FD120-17 CI G3/4
Contitech: FD 120-17 CI G3/4
Airkraft: 113053
Airkraft: 2B-181

Specifications and Detailed Technical Parameters

Nut/Blind Nut

Top plate screw (nut) teeth: 2XM8×1.25

Screw center distance of the top cover plate: 70mm

Screw (nut) teeth of the bottom cover plate: 2XM8×1.25

Screw center distance of the bottom cover plate: 70 mm

Air Hole/Air Inlet/Air Fittings

Air hole/air inlet: G3/4

Screw center distance between the air hole and the nut: 35mm

Cover Plate

Top plate diameter: 135 mm

Diameter of the bottom cover: 135mm

Bellows Rubber Bellows

Maximum diameter of rubber bellows: 215 mm

Working stroke: minimum 75 mm to maximum 230 mm

Maximum height: 230mm

Minimum height: 75mm

Stroke height: 155mm

Bumper Block

Without bumper block

Belt Loop/Girdle Hoop/Girdle Ring

Without belt loop/girdle hoop/girdle ring

Pressure P \| Bar	3	4	5	6	7	8	Vol.V(I)
Height H (mm) \| 200	3.4	4.75	5.9	7.25	8.5	9.7	4
180	4.18	5.65	7.05	8.6	10.1	11.5	3.6
160	4.9	6.5	8.13	9.85	11.5	13.1	3.3
140	5.48	7.24	9.05	10.9	12.7	14.5	3
120	5.98	7.93	9.9	11.9	13.9	15.8	2.7
100	6.43	8.54	10.7	12.9	15.1	16.9	2.3
80	6.8	9.05	11.3	13.7	15.9	17.9	2
