| उत्पत्ति के प्लेस: | गुआंग्डोंग, चीन |
| ब्रांड नाम: | GUOMAT |
| प्रमाणन: | ISO/TS16949, ISO9001 |
| मॉडल संख्या: | 2बी6107 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | US$59.9-69.9/PC |
| पैकेजिंग विवरण: | मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के रूप में |
| प्रसव के समय: | 5-8 कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 1000pcs/सप्ताह |
| गुणवत्ता: | 100 % परीक्षण किया | बिक्री के बाद सेवा: | 12 महीने |
|---|---|---|---|
| वायु का छेद: | 1/4 बसपा | फायरस्टोन: | W01-M58-6107 |
| संयोग: | 2 | संबंध पद्धति: | ब्लाइंड नट्स |
| अधिकतम ऊँचाई: | 394एमएम | न्यूनतम, ऊंचाई: | 77 मिमी |
| प्रमुखता देना: | Firestone Suspension Air Spring,Double Convoluted Air Spring,1/4 BSP Rubber Bellows |
||

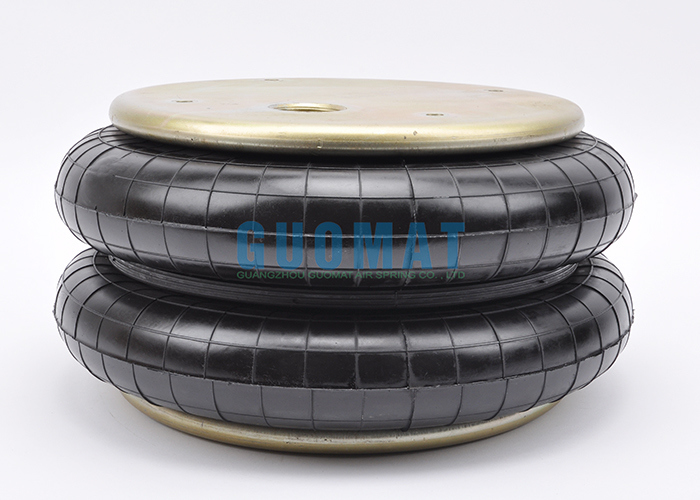

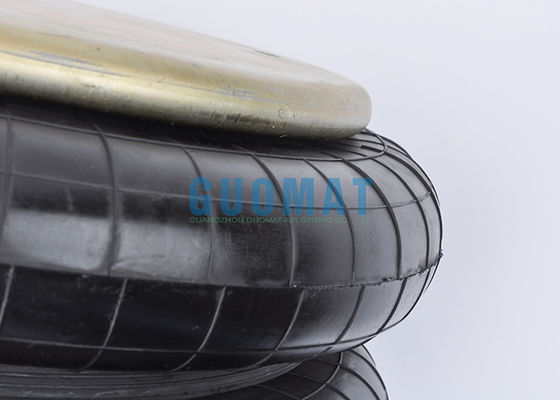

The GUOMAT 2B6107 is a double-curved air spring with the exact same specifications as the Firestone W01-M58-6107. Its signature "gourd-shaped" design provides excellent stability and flexible travel through a central waist ring.
It is primarily used in the suspension systems of commercial vehicles such as buses and trucks. Its core function is to dampen road vibrations, automatically adjust the vehicle height, thereby improving ride comfort, protecting cargo, and maintaining vehicle stability. This is a highly reliable component designed specifically for heavy-duty operating conditions.
| Top Cover Plate Diameter | 287 mm |
| Screw Center Distance of Top Cover Plate | 159 mm |
| Bottom Cover Plate Diameter | 287 mm |
| Screw Center Distance of Bottom Cover Plate | 159 mm |
| Top Cover Plate Threaded Hole | M8X1.25 |
| Bottom Cover Plate Screw(Nut) Tooth | M8X1.25 |
| Air Hole | 1/4BSP |
| Rubber Bellow Max. Diameter | 394 mm |
| Minimum Height | 77 mm |
| Maximum Height | 394 mm |
| Assembly Height (mm) | Volume@7 BAR (cu cm) | kN Force | @3BAR | @4BAR | @5BAR | @6BAR | @7BAR | @8BAR |
|---|---|---|---|---|---|---|---|---|
| 320 | 26307 | 560 | 14.44 | 50.52 | 26.35 | 33.20 | 39.23 | |
| 280 | 23714 | 653 | 17.82 | 24.56 | 31.24 | 38.87 | 45.73 | |
| 240 | 20846 | 729 | 20.39 | 27.85 | 35.13 | 43.41 | 51.04 | |
| 200 | 17673 | 799 | 22.69 | 30.81 | 38.73 | 41.65 | 55.94 | |
| 160 | 14250 | 859 | 24.68 | 33.30 | 41.87 | 51.34 | 60.11 | |
| 120 | 10748 | 892 | 25.94 | 34.86 | 43.76 | 53.44 | 62.41 | |
| 80 | 6382 | 889 | 26.62 | 35.40 | 44.31 | 53.60 | 62.25 |
