FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	2B7788

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	6pcs
मूल्य:	$59.9-69.9/pc
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की जरूरत के रूप में
प्रसव के समय:	2-8 काम के दिन
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, एल/सी
आपूर्ति की क्षमता:	1000pcs/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

मॉडल नाम:	निलंबन वायु वसंत	गारंटी:	1 वर्ष
सामग्री:	प्राकृतिक रबर और एल्यूमीनियम कवर	पैकेट:	कार्टन/डिब्बे
रंग:	काला	प्रति संदर्भ:	Goodyear 2B9-245
फायरस्टोन:	W01-358-7788	ज्यादा से ज्यादा ऊंचाई:	274 मिमी
प्रमुखता देना:	Firestone suspension air bags , Goodyear convoluted rubber bellows , 510 Firestone air spring

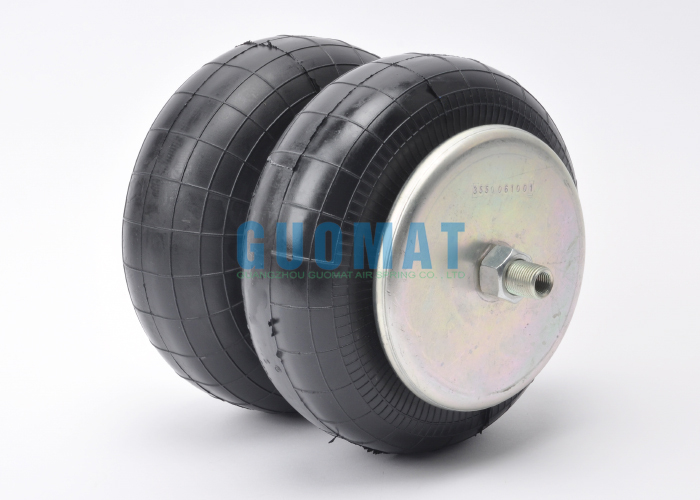

FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows

Product Description

The GUOMAT 2B7788 is a high-performance air spring designed to replace Goodyear 2B9-245 models. Utilizing high-quality rubber and high-strength cord, it offers exceptional durability, sealing, and fatigue resistance, effectively filtering road vibrations and enhancing ride comfort and vehicle stability. Easy to install, it's an ideal repair and upgrade for suspension systems on commercial trucks, buses, and other vehicles.

Compatibility

GUOMAT Number: 2B7788
Compatible with Goodyear: 2B9-245 / 2B 9-245
Compatible with Goodyear: 578923202 / 578-92-3-202 / 578 92 3 202
Compatible with Contitech: 64519
Compatible with Contitech: FD200-19 510 / FD 200-19 510
Compatible with Contitech: 7788
Compatible with Contitech: W01-358-7788 / W01 358 7788 / W013587788
Compatible with Automann: ABSP2B12R-7788
Compatible with Triangle: 4510
Compatible with Watson&Chalin: AS-0088

Technical Data

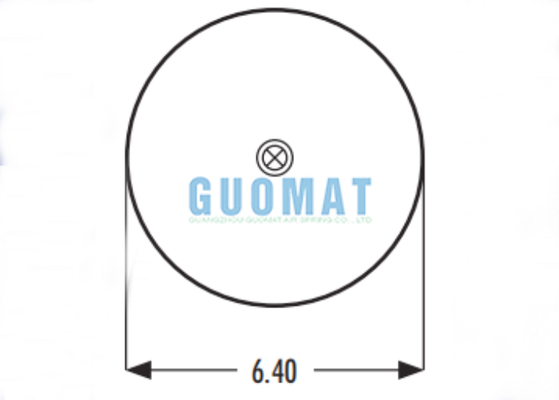

1. Top cover diameter: 160mm

2. Bottom cover diameter: 160mm

3. Center-to-center distance between bottom threaded holes: 89mm

4. Maximum outer diameter: 251.5mm

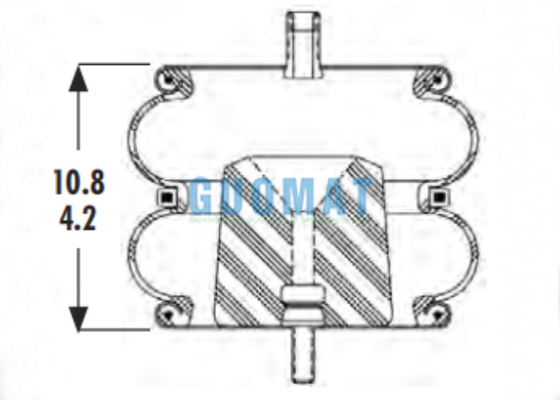

5. Maximum height: 274mm

6. Minimum height: 95mm

About Shipping

(1) Your goods will be shipped within 1-7 days after payment. We will use fast and secure express delivery methods such as DHL, TNT or FEDEX, and it will take about 5-10 days to reach most countries/regions in the world.

(2) We hope that the goods will be delivered on time, but since this is an international delivery, the actual delivery time depends on the logistics company and local customers.

(3) For any problems caused by the shipping service, such as accidents, delays or other problems, we will actively handle it for you.

(4) Any import fees are borne by the buyer.

GUOMAT Other Air Spring Models

Firestone	Contitech	Goodyear	Phoenix
W01-M58-6165	FS 120-9
W01-M58-6166	FS 120-9
			SP 1 B 07
W01-358-7731
W01-M58-6374	FS 200-10		SP 1B 12
	FS 70-7		SP 1 B 05
W01-358-7008	FS 330-11 474	1B12-300/313
W01-358-7009	FS 330-11 468	1B12-301/578913301
W01-358-6994/19	FS 330-11 647
	FS 40-6 1/8 M8		SP1B04
W01-358-7564	FS120-10	1B8-550
W01-358-6932	FD 200-19 452	2B9-246
W01-358-6935	FD 200-19 499	2B9-201
W01-358-6940	FD 200-19 450	2B9-230
W01-358-6941	FD 200-19 448	2B9-265/280
W01-358-6949	FD200-19506
W01-358-7788	FD 200-19 510	2B9-245
