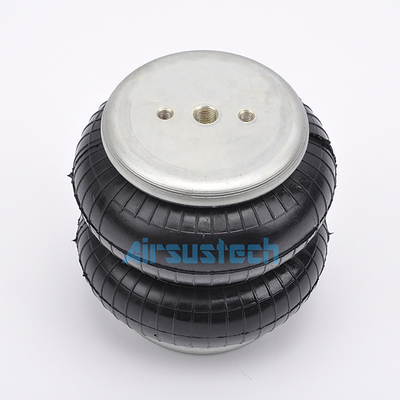

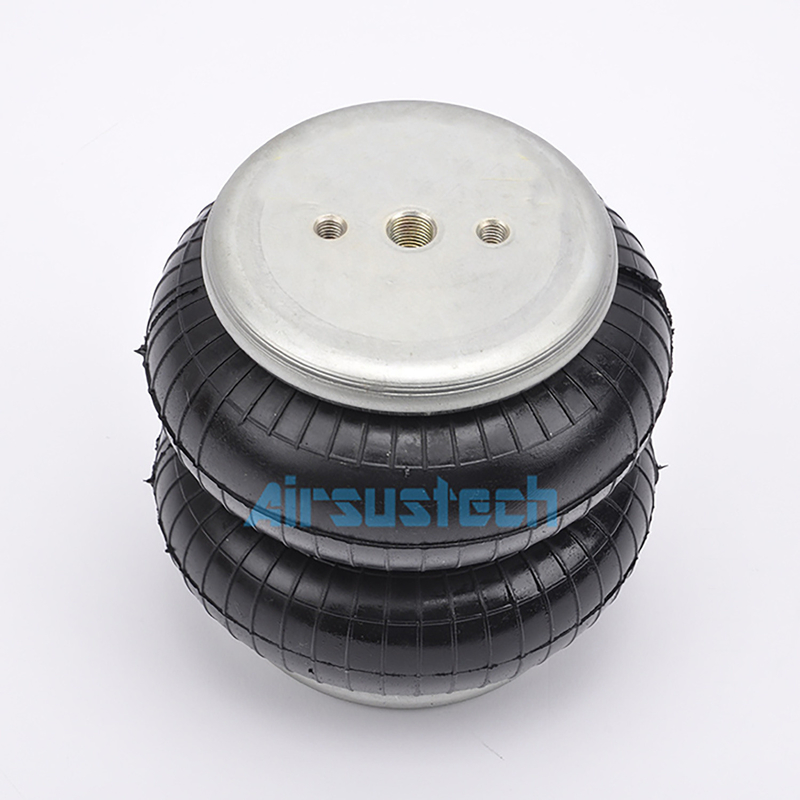

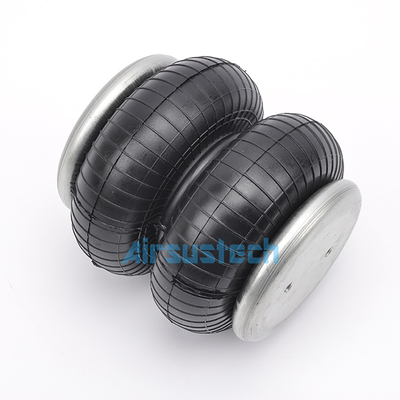

FD 70-13 Contitech Suspension Air Spring G1/4 Air Fitting Pneumatic Bellows Actuators

FD 70-13 Contitech Suspension Air Spring G1/4 Air Fitting Pneumatic Bellows Actuators

उत्पाद विवरण:
उत्पत्ति के प्लेस: ग्वांगडोंग, चीन
ब्रांड नाम: GUOMAT
प्रमाणन: ISO/TS16949:2009
मॉडल संख्या: 2B7070
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 6pcs
मूल्य: $59.9-69.9/pc
पैकेजिंग विवरण: मजबूत कार्टन बॉक्स या ग्राहकों की जरूरत के रूप में
प्रसव के समय: 2-8 काम के दिन
भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन, एल/सी
आपूर्ति की क्षमता: 1000pcs/सप्ताह
संपर्क करें
विस्तृत उत्पाद विवरण
प्रतिरूप संख्या।: 2B7070 वसंत सामग्री: रबड़
गुणवत्ता: 100 % परीक्षण किया धरना: झटका कम करना
एचएस कोड: 8708809000 बिक्री के बाद सेवा: 12 महीने
प्रकार: गैस से भरे आवेदन: ऑटो एयर सस्पेंशन

FD 70-13 Contitech Suspension Air Spring G1/4 Air Fitting Pneumatic Bellows Actuators



Cross reference



Contitech FD 70-13

Contitech FD 70 13

Contitech FD 70-13 CI

Contitech FD 70 13 CI

Contitech FD 70-13 CI G1/4

Contitech FD 70 13 CI G1/4



Specifications and Tecnical Parameters



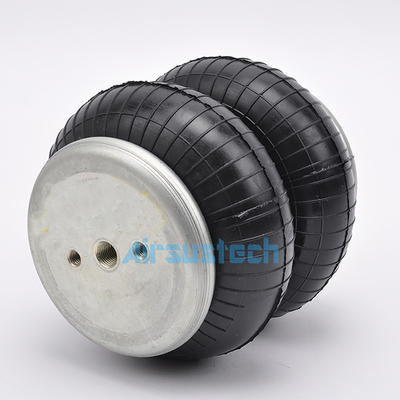

1. Nut/blind nut Top plate screw (nut) teeth: 2 x M8X1.25

   Top plate screw center distance: 44.5 mm

2. Bottom cover plate screw (nut) teeth: 2 xM8X1.25

    Bottom plate screw center distance : 44.5 mm

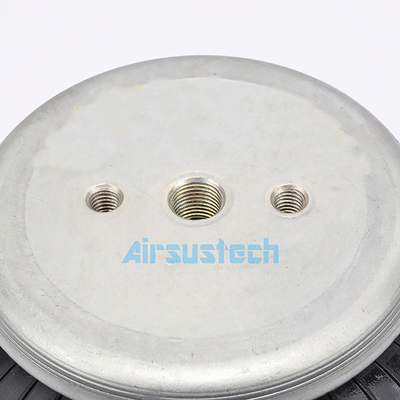

2. Air hole/air inlet/air fitting air hole/air inlet: G1/4

    Air hole place: Middle

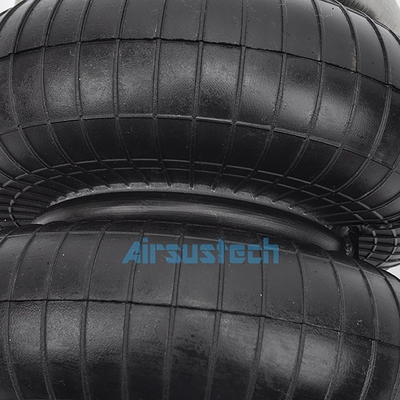

3. Top plate diameter (width): 105 mm, bottom cover diameter (width): 105 mm bell-shaped rubber bellows rubber bellows diameter: 146 mm

4. Bumper block/bumper block without bumper
5. Belt loop/belt loop with belt loop: with one piece of belt loop



Min. pressure: 0bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 1.5kg



Vibration isloation-dynamic characteristic values
Design height H: recommended 175mm, minimum 160mm

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Force (Load) [KN] 1.9 2.5 3.5 3.8 4.5 5.2 1.8
Spring rate [N/mm] 46 59.5 73 86 99.5 112.5
Natural frequency [Hz] 2.5 2.5 2.4 2.4 2.4 2.4



Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 180 1.6 2.3 2.9 3.5 4.1 4.7 1.8
160 2.4 3.15 3.9 4.7 5.6 6.4 1.6
140 2.9 3.88 4.8 5.8 6.8 7.8 1.5
120 3.4 4.5 5.7 6.8 7.9 9.2 1.3
100 3.9 5.23 6.5 7.8 9.1 10.4 1.1
80 4.3 5.7 7.1 8.5 10 11.4 0.7





Anti-Resonance Application of Rubber Air Spring in Shakeout Machine


It is a convenient and reasonable method to use the clamping force (expansion force) of the air spring to control and prevent resonance, and its clamping force is superior to other anti-resonance methods, such as rubber damping blocks, steel spring dampers, etc. .


Install air springs on both sides of the body of the inertia vibration shakeout machine, and then use compressed air as the internal pressure. During normal vibration shakeout or shakeout conveying, the pressure decreases and decompresses. When the shakeout machine stops and shuts down, the internal pressure suddenly increases and maintains A certain pressure will form the expansion and clamping effect on both sides, so that the resonance phenomenon will be reduced to a minimum value until the machine stops. Similarly, when the shakeout machine is started, the internal pressure is moderately increased, and the clamping force is maintained at a small state. After a few seconds, the shakeout work tends to be normal.
