14 1/2''x2 Double Convoluted Air Bags FD 614-26 DS Contitech Flange-Vonnected Air Spring

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	2B14.5X2T

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	5पीसी
मूल्य:	USD159.9-229.9/PC
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के अनुसार
प्रसव के समय:	3-7 कार्य दिवस
भुगतान शर्तें:	एल/सी, टी/टी, वेस्टर्न यूनियन या अन्य
आपूर्ति की क्षमता:	1000 पीसी/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

रबर नंबर:	14.5x2	समारोह:	सदमा कम करें
गुणवत्ता:	100% परीक्षण किया	स्थिति:	बिल्कुल नया
बिक्री के बाद सेवा:	1 वर्ष	पद:	औद्योगिक मशीन
ContiTech:	एफडी 614-26 डीएस	वायु का छेद:	जी 1/2
प्रमुखता देना:	14.5x2 double convoluted air spring , Contitech flange-connected air bag , industrial air spring with warranty

14 1/2"x2 Double Convoluted Air Bags FD 614-26 DS Contitech Flange-Connected Air Spring

High-quality industrial air spring designed for vibration isolation and suspension applications in trucks, trailers, and industrial equipment.

Product Specifications

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	GUOMAT
Model Number	2B14.5X2T
Material	Rubber and Steel
Warranty	1 Year
MOQ	1 PCS If We Have Stock
Package	(1) Brown Carton (2) Customer Required Packaging (3) Normal Exported Package
Delivery Time	2-8 Working Days
Payment	T/T, L/C, PayPal, Western Union
After Service	(1) Examination Before Shipment (2) Follow Up The Customers' Feedback
Main Products	Air Spring, Convoluted Air Spring, Industrial Air Springs, Air Suspension Spring, Air Compressor, Air Valve, Bus Rubber Bellows, Truck & Trailer Air Bags, Cabin Air Shock, Electric Water Pump

Compatible Brands & Part Numbers

Fits Contitech FD614-26
Fits Contitech FD 614-26
Fits Contitech FD614-26 DS
Fits Contitech FD 614-26 DS
Fits Firestone W01R584064
Fits Firestone W01 R58 4064
Fits Firestone W01-R58-4064
Fits Dunlop 14.5X1 / 14 1/2"X1
Fits Dunlop SP1556
Fits Norgren M/31142
Fits Norgren M 31142
Fits Norgren M31142

Technical Data: Contitech FD 614-26

Cover plate diameter: 310mm
Bolts: 4 pieces x M10
Center distance between bolts: 282.5mm
Maximum outer diameter: 400mm
Maximum height: 340mm
Minimum compression height: 75mm
Design height: 250mm

Vibration Isolation - Dynamic Characteristic Values

Design height H	recommended 250mm, minimum 230mm

Pressure P (bar)	3	4	5	6	7	8	VoI.V(I)
Force(Load) (kN)	17.3	23.6	29.3	35.7	41.7	47.8	20
Spring Ride (N/mm)	197	252	304	358	409	461
Natural Frequency (Hz)	1.7	1.6	1.6	1.6	1.6	1.6

Pressure P (bar)	3	4	5	6	7	8	VoI.V(I)
Height H (mm)
290	12.8	17.8	22.5	27.5	33	23
250	16.9	22.9	29	35.3	41.8	48.4	20
200	20.9	28.1	35.4	42.9	50.4	58.2	17
150	25.1	33.7	42.4	51.2	60.2	69.3	13
100	28.6	38.2	47.8	57.6	67.4	69.3	8.6

GUOMAT 2B14.5X2T Bellows-Type Double-Curved Air Spring

GUOMAT is a manufacturer of air springs with comprehensive training and knowledge in Continental's extensive range of air spring products. We ensure you receive all the support you need when purchasing air springs.

Air springs are available in single-curved, double-curved, and triple-curved designs, suitable for a wide variety of suspensions and applications.

You will find GUOMAT air springs in various trucks, trailers, and industrial locations. These air springs achieve linear or angular motion with dimensions far smaller than traditional cylinders. They are highly adaptable and widely applicable to various mechanical equipment, such as presses, tensioners, rolling mills, conveyors, elevators, and packaging machines. Furthermore, as vibration dampers, they effectively reduce the adverse effects of vibration.

2B14.5X2T bellows-type industrial air spring features double-layer bellows, effective area 614 square centimeters, maximum stroke 26 centimeters, detachable connecting parts, stud mounting, and G1/2 air vent.

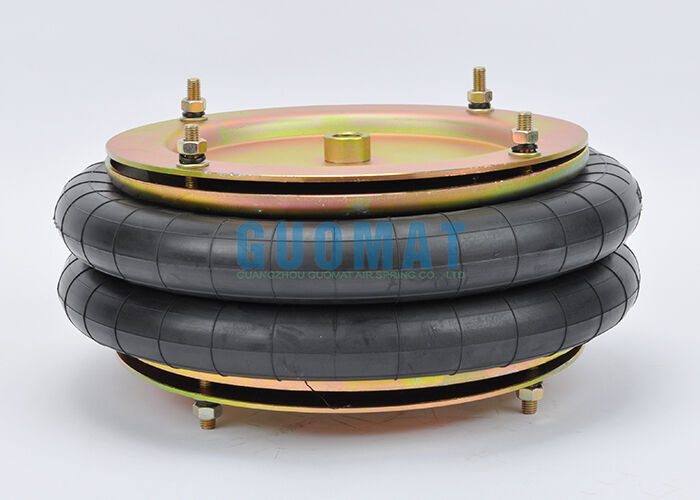

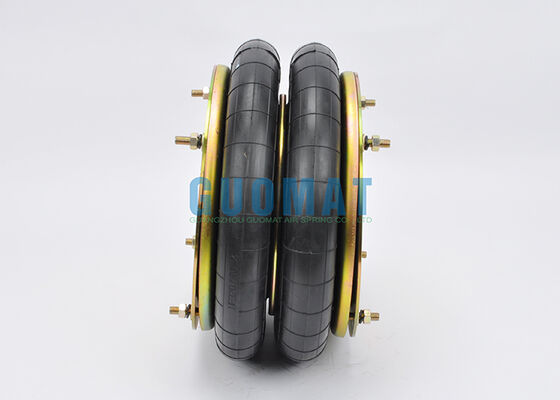

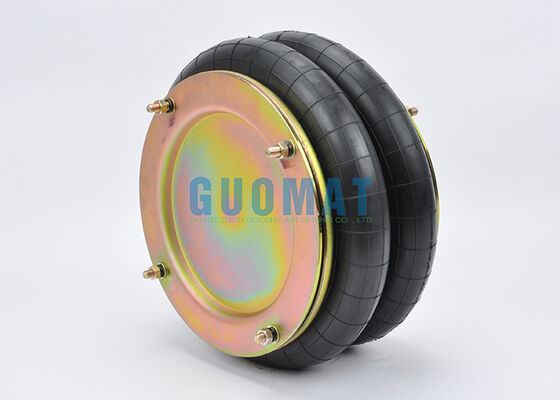

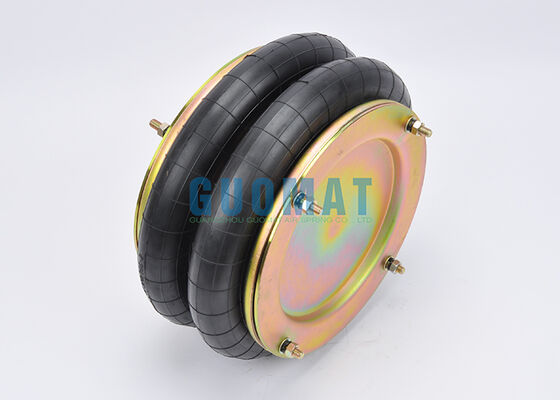

Product Images
