W01-R58-4070 Firestone Air Bags 6" x 2 Rubber Bellows PM/31062 Norgren Shock Absorbers

उत्पाद विवरण:

उत्पत्ति के प्लेस:	गुआंग्डोंग, चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	2b6x2p

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	6pcs
मूल्य:	$99.9/pc-$119.9/pc
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की जरूरत के रूप में
प्रसव के समय:	2-8 काम के दिन
भुगतान शर्तें:	टी/टी, वेस्टर्न यूनियन, एल/सी
आपूर्ति की क्षमता:	1000pcs/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

वसंत सामग्री:	प्राकृतिक रबर	गारंटी:	12 महीने की वारंटी
रंग:	काला	पैकेट:	ब्राउन कार्टन बॉक्स
एचएस कोड:	8708809000	जटिल:	डबलकन्वॉल्यूटेड
धौंकनी संख्या:	6''X2	फायरस्टोन:	W01-R58-4070
प्रमुखता देना:	Firestone rubber air spring , 6x2 rubber bellows air bag , Norgren shock absorber air spring

W01-R58-4070 Firestone Air Bags 6" x 2 Rubber Bellows PM/31062 Norgren Shock Absorbers

W01-R58-4070 Firestone Air Bags 6" x 2 Rubber Bellows PM/31062 Norgren Shock Absorbers

Product Specifications

Brand	GUOMAT
Model	2B6X2P
Item	Rubber Air Spring
Main Materials	Rubber and Aluminum
Warranty Period	1 Year
Color	Black Rubber Parts and Silver Cover Plate

OE Manufacturer Numbers

Continental ContiTech: FD 76-14 1/2 M8
Continental ContiTech: FD 76-14 D1 G1/2
Continental ContiTech: FD 76-14 Dl G1/2 M8
Continental ContiTech: FD 76-14 DI G1/2 CR
Continental ContiTech: FD 76-14 DI CR G1/2
Continental ContiTech: FD 76-14 DICR/FD76-14DICR/FD7614DICR
Continental ContiTech Bellow: FD 76-14/FD76-14/FD7614
Firestone No.: WO1-R58-4070/W01 R58 4070/WO1R584070
Firestone Style: 6"x2
Dunlop FR: 6"x2 SP1646(COMPOSITE)
Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride): A 3 1330 02 01/A313300201
Norgren: PM/31062/PM 31062/PM31062
Nominal 0 (inch)x convolutions: 6" x2/6"x2/6x2
Parker: 6"x2 9109001A
YS-AIR: YS-160-2VS/YS 160 2VS/YS1602VS

Technical Data of Contitech FD 76-14 DI

FD 76-16 DI CR is a double convoluted air spring. Its maximum outer diameter is 178 mm, and the diameter of the top and bottom cover plates is 152.5 mm. The top and bottom cover plates have four M8 threaded holes. The center distance between the threaded holes is 127 mm. The air vent specification is G1/2. The maximum height is 195 mm, the minimum height is 80 mm, and the design height is 160 mm.

Pressure P	bar	3	4	5	6	7	8	Vol.V(I)
Height H(mm)	160	2.58	3.52	4.5	5.5	6.54	7.6	2
	140	3.3	4.46	5.64	6.84	8.07	9.33	1.7
	120	3.88	5.21	6.57	7.96	9.38	10.8	1.5
	100	4.59	6.16	7.76	9.4	11.1	12.8	1.2

Application in Concrete Block Molding Machines

As a core piece of equipment in the building materials production industry, the performance of concrete block molding machines directly determines the quality stability, production efficiency, and service life of the blocks. During operation, this equipment must withstand high-frequency vibration and impact, load fluctuations, and precise pressure control. Traditional elastic elements (such as metal springs and rubber pads) are increasingly unable to meet the modern production requirements for low loss, high adaptability, and long service life. Industrial air springs, with their unique elastic characteristics, adjustability, and excellent shock absorption performance, have been widely used in key parts of concrete block molding machines, becoming an important component for improving the overall performance of the equipment.

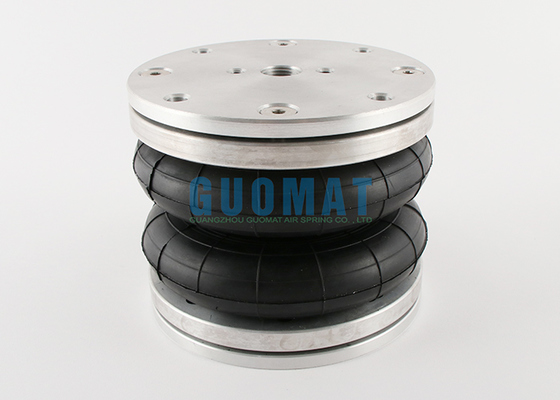

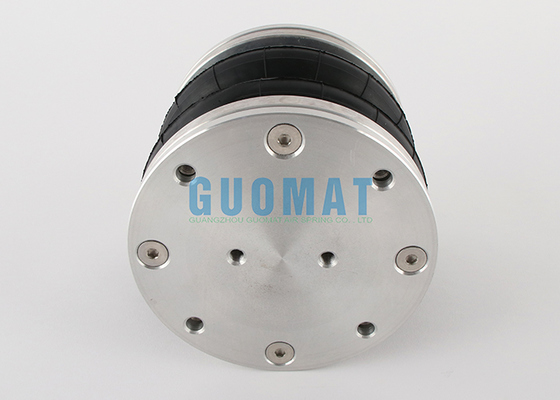

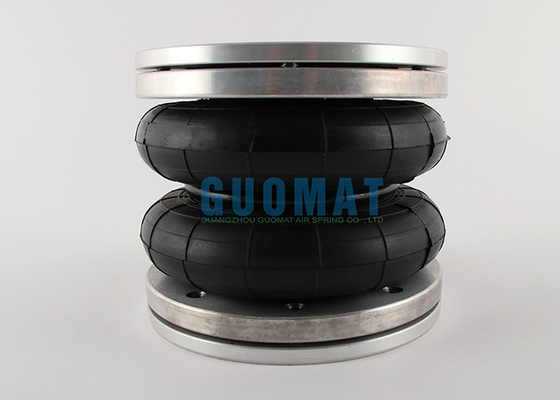

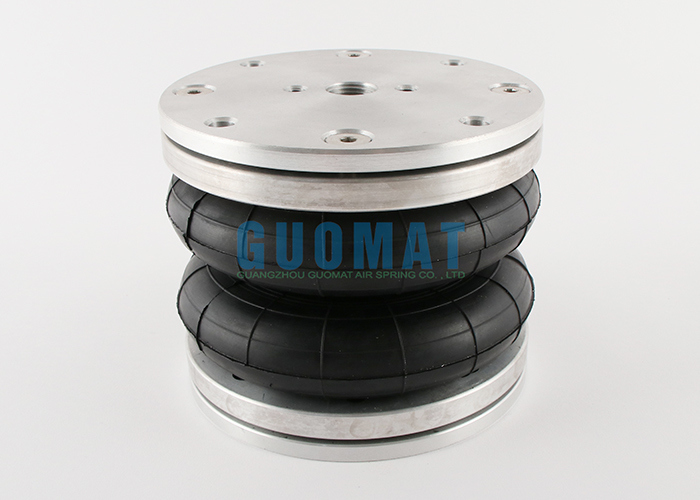

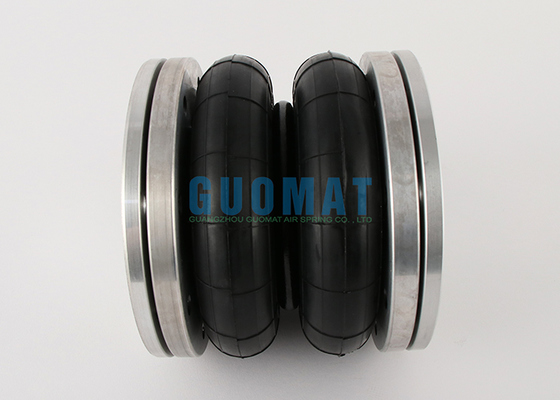

Product Images
