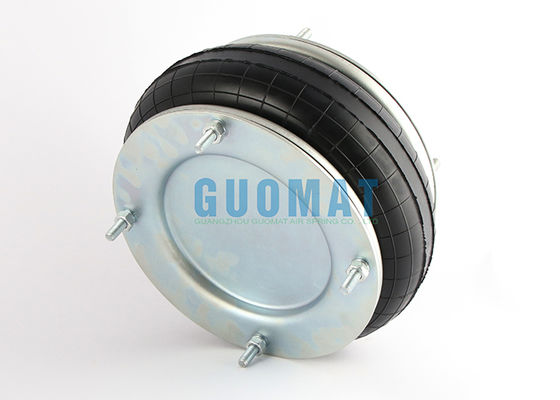

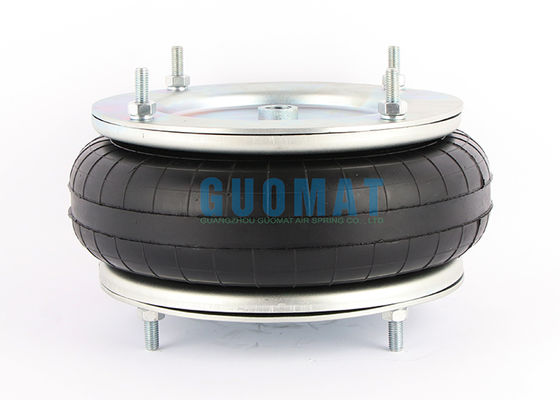

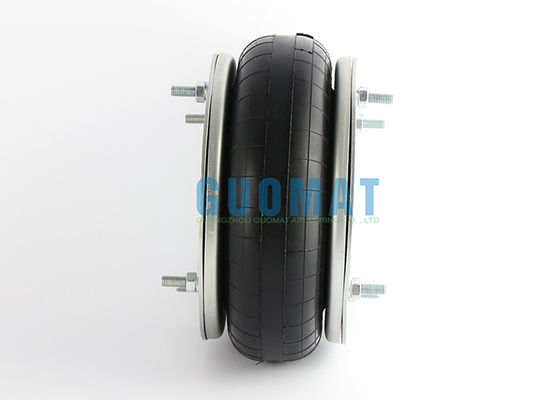

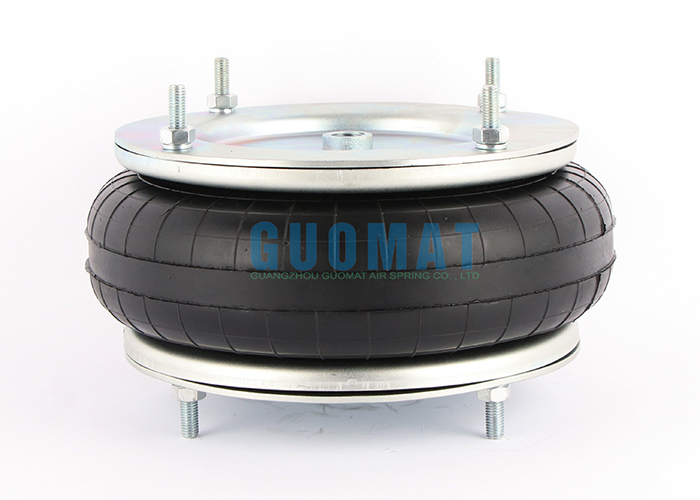

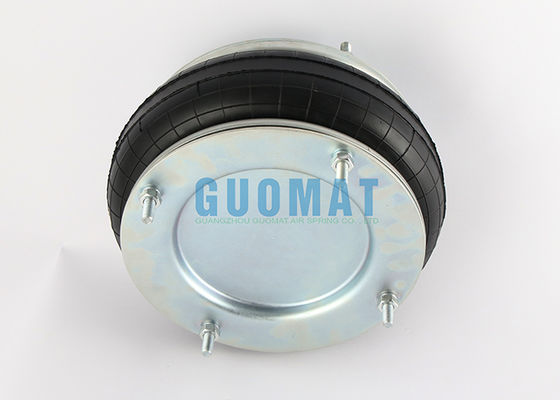

12''x1 Rubber Bellows FS 412-10 DS Contitech Industrial Air Spring Bags With Flange

उत्पाद विवरण:

उत्पत्ति के प्लेस:	गुआंगज़ौ, चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	1b12x1t

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	5PCS
मूल्य:	USD109.9-129.9/PC
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के रूप में
प्रसव के समय:	3-7 कार्य दिवस
भुगतान शर्तें:	एल/सी, टी/टी, वेस्टर्न यूनियन या अन्य
आपूर्ति की क्षमता:	1000 पीसीएस / सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

मॉडल नाम:	रबर एयर स्प्रिंग	सामग्री:	रबर और स्टील
ओम:	हाँ	गारंटी:	12 महीने
अन्य नाम:	रबर हवा के धनुष	DUNLOP:	12''X1
ContiTech:	एफएस412-10	जटिल:	एकल जटिल प्रकार
प्रमुखता देना:	12x1 rubber air spring bellows , Contitech industrial air spring bags , flange rubber air spring bellow

12''x1 Rubber Bellows FS 412-10 DS Contitech Industrial Air Spring Bags With Flange

Product Description

Industrial air spring designed for industrial machine applications, featuring imported natural rubber construction and gas-filled operation.

Item Name	Industrial Air Spring
Model No.	1B12x1T
Brand	GUOMAT
Warranty	12 Months
Type	Convoluted Air Spring
Service Offered	OEM
Suspension System	Air Spring Suspension
Applications	For Industrial Machine
Material	Imported Natural Rubber
Operation	Gas-filled
Package	Standard Packing Or Customized

Compatible Replacement Models

Continental ContiTech: FS 412-10 DS 67962
Continental ContiTech: FS 412-10 1/2 M10
Continental ContiTech: FS 412-10 G1/2 M10
Continental ContiTech: FS 412-10 DS G1/2
Continental ContiTech: FS 412-10 DS G1/2 M10
Continental ContiTech: FS 412-10 DS/FS 412-10DS/FS 412-10DS
Continental ContiTech Bellow: FS 412-10/FS412-10/FS41210
Firestone No: WO1-R58-4060/W01R58 4060/W01R584060
Firestone Style: 12" x1/12"x1/12x1
Dunlop FR: 12"x1 SP1540
Dunlop UK (Pneuride): PNP 30552 0120/PNP305520120
Norgren: M/31121/M 31121/M31121
Nominal (inch) x convolutions: 12" x1/12"x1/12x1
Parker: 12"x1 9109044

Technical Data

Design height	130mm
Air Fitting specification	G1/2
Top cover bolts	4pcs XM10
Bottom cover bolts	4pcs XM10
Center distance between bolts	232mm
Cover plate diameter	260mm
Outer diameter	300mm

Working Principle of Industrial Air Springs

Load Loading and Vibration Isolation: When equipment or loads press on an air spring, the compressed air inside is sealed within the air chamber. Upon compression, the air pressure increases, generating a counterforce to support the load.

Unique Stiffness Characteristics: Unlike the linear stiffness of steel springs, air springs possess non-linear stiffness. By rationally designing the volume and shape of the air chamber, a low natural frequency can be achieved near the rated load, resulting in excellent high-frequency vibration isolation.

Height Control: This is crucial in industrial applications. Through an additional height valve or electronic control system, the air pressure within the air spring can be monitored and adjusted in real time, precisely maintaining the height or level of the load, unaffected by changes in load distribution or external disturbances.

GUOMAT 1 Convoluted Air Bellows

GUOMAT	FIRESTONE	DUNLOP PNEURIDE	DUNLOP SPRINGRIDE	CONTITECH	NORGREN	PARKER
2.75x1		2 3/4''X1	SP906	FS 22-3 DI		9109025
4.5X1	W01-R58-4050	4 1/2''X1	SP2334	FS 44-5 DI	PM/31041	9109400
6X1(AI)	W01-R58-4078	6''X1	SP2913	FS 76-7 DI	PM/31061	9109004A
6X1(STEEL)	W01-R58-4052	6''X1	SP1536	FS 76-7 DS	M/31061	9109004
8X1	W01-R58-4054	8''X1	SP1537	FS 138-8 DS	M/31081	9109014
10X1	W01-R58-4057	10''X1	SP2523	FS 210-10 DS	M/31101	9109024
12X1	W01-R58-4060	12''X1	SP1540	FS 412-10 DS	M/31121	9109044
14.5X1	W01-R58-4063	14'1/2'X1	SP1543	FS 614-13 DS	M/31141	9109064
16X1	W01-R58-4066	16''X1		FS 816-15 DS	M/31161	9109026
