ईमेल: linda@662n.com Mob: +8613924100039 (WhatsAPP)
वीचैट: airspringG Skype: guomat

|
| उत्पत्ति के प्लेस: | गुआंग्डोंग, चीन |
| ब्रांड नाम: | GUOMAT |
| प्रमाणन: | ISO/TS16949:2009 |
| मॉडल संख्या: | 2ख6943 |
| न्यूनतम आदेश मात्रा: | 6pcs |
|---|---|
| मूल्य: | $59.9-69.9/pc |
| पैकेजिंग विवरण: | मजबूत कार्टन बॉक्स या ग्राहकों की जरूरत के रूप में |
| प्रसव के समय: | 2-8 काम के दिन |
| भुगतान शर्तें: | टी/टी, वेस्टर्न यूनियन, एल/सी |
| आपूर्ति की क्षमता: | 1000pcs/सप्ताह |
| प्रोडक्ट का नाम: | रबर एयर स्प्रिंग | सामग्री: | रबर बेलो और स्टील कवर |
|---|---|---|---|
| गारंटी: | 1 साल की वारंटी | नमूना: | उपलब्ध |
| संचालन: | गैस से भरे | MOQ: | 10 टुकड़े |
| पैकेट: | मानक पैकिंग या अनुकूलित | क्रॉस नंबर: | फायरस्टोन W01-358-6943 |
| प्रमुखता देना: | Contitech air lift rubber bag,Goodyear industrial air spring,426 industrial air spring |
||

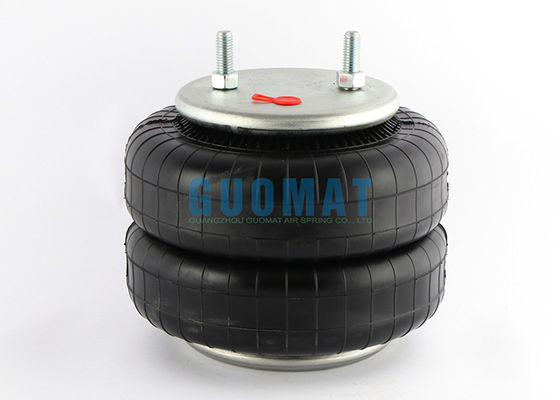

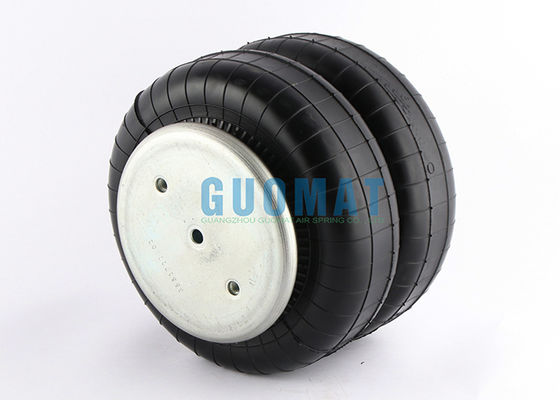

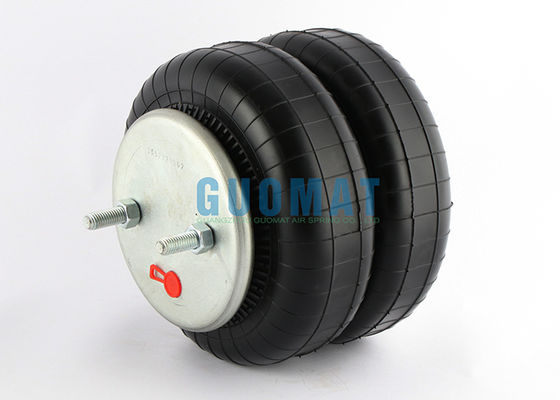

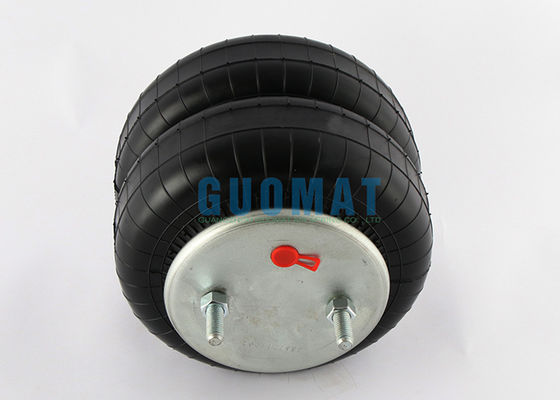

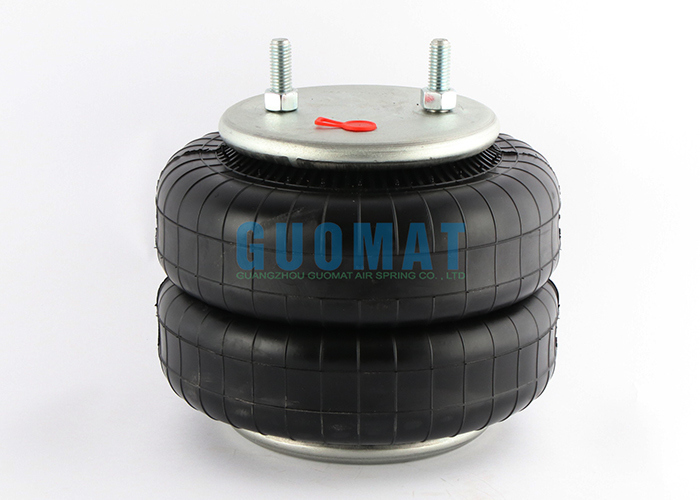

The GUOMAT 2B6943 is a bladder-type hyperbolic air spring manufactured entirely according to Firestone's original specification W01-358-6943. Both are identical in all key dimensions and mounting interfaces, allowing for seamless interchangeability. This product is a typical "gourd-shaped" air spring, its core structure consisting of a bladder made of high-strength rubber and fabric layers, an internal rigid waist ring, and upper and lower metal end caps. The waist ring is a hallmark feature of this spring, dividing the air bladder into two bulging air chambers. This design not only provides flexible travel and an effective load-bearing area but also significantly improves the spring's lateral stability under compression, preventing excessive twisting and swaying.
| Working temperature | -40°C bis +70°C |
| Failure testing | ≥3 millions |
| Top Cover Plate Diameter | 160mm |
| Bottom Cover Plate Diameter | 160mm |
| Gas Hole / Air inlet | 1/4NPTF |
| Rubber Bellows MAX Diameter | 262mm |
| The Working Stroke | MAX 325 mm to MIN 79 mm |
| Top Cover Plate Screw (Nut) Tooth | 2X1/2-13UNC |
| Bottom Cover Plate Screw (Nut) Tooth | 2X3/8-16UNC |
| Screw Center Distance of Top Cover Plate | 89mm |
| Screw Center Distance of Bottom Cover Plate | 89mm |
| Distance Between Threaded Hole and Air Hole | 44.5mm |
The GUOMAT 2B6943 air spring is designed with a perfect balance between compactness and performance. Its precise installation height, free-stretch height, maximum working stroke, and minimum height after full compression all strictly adhere to original equipment manufacturer (OEM) specifications, ensuring a perfect fit to the installation space of the original vehicle design. Its upper and lower end caps are typically made of galvanized or painted carbon steel to resist corrosion; the upper cap usually has through holes for bolt fixing, while the lower cap also has bolt holes, achieving a robust and sealed installation. The air spring itself is made of fatigue-resistant, ozone-resistant, and weather-resistant synthetic rubber, while the internal reinforced fabric layer ensures its load-bearing capacity and durability under high pressure.
The core application area for air springs is in commercial vehicle suspension systems, particularly in the drive axles or follow-up axles of buses, coaches, trucks, and various trailers. It plays multiple key roles in the vehicle suspension: it effectively buffers and absorbs impacts and vibrations from the road surface through the elasticity of the internal compressed air, providing passengers with a more comfortable ride and protecting the vehicle itself and the cargo it carries; by connecting to the height control valve, it can automatically maintain a constant vehicle chassis height, regardless of changes in load, thus ensuring a stable driving posture.
व्यक्ति से संपर्क करें: Sunny
दूरभाष: 18928788039
