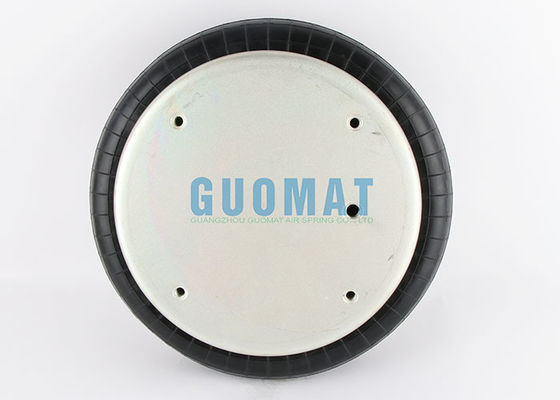

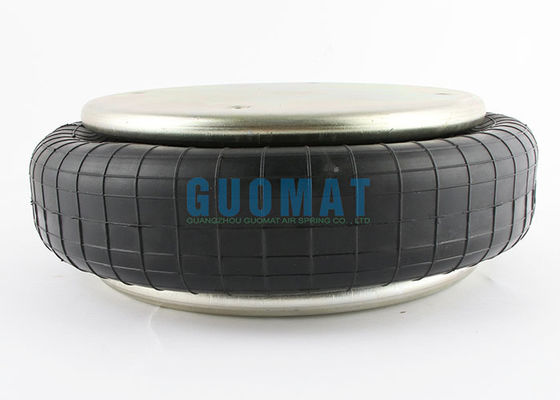

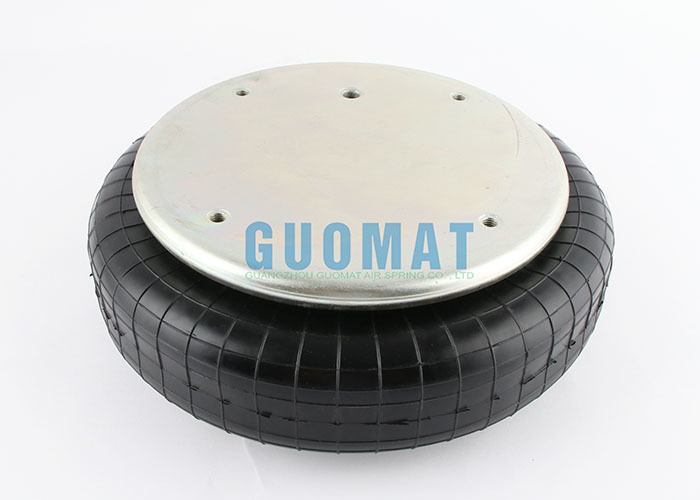

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

  • FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
  • FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
  • FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
उत्पाद विवरण:
उत्पत्ति के प्लेस: ग्वांगडोंग, चीन
ब्रांड नाम: GUOMAT
प्रमाणन: ISO/TS16949:2009
मॉडल संख्या: 1बी53011
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 6pcs
मूल्य: $49.9-59.9/pc
पैकेजिंग विवरण: मजबूत कार्टन बॉक्स या ग्राहकों की जरूरत के रूप में
प्रसव के समय: 2-8 काम के दिन
भुगतान शर्तें: एल/सी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 1000pcs/सप्ताह
संपर्क करें
विस्तृत उत्पाद विवरण
प्रोडक्ट का नाम: एयर स्प्रिंग/एयरबैग/एयर सस्पेंशन गारंटी: 1 वर्ष
सामग्री: रबर + स्टील पैकिंग: ब्राउन कार्टन
स्थिति: 100% ब्रांड नया ओईएम: कॉन्टिटेक FS530-11
वज़न: 5.9 किलो रंग: काला
प्रमुखता देना:

Contitech industrial air spring

,

51mm-175mm stroke air actuator

,

convolution air actuator with warranty

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator is a high-performance air suspension component designed for industrial applications.

Product Details
  • Type: Single Convoluted Air Suspension Airbag
  • Model Number: 1B53011
  • Condition: Brand New
  • Material: Rubber + Steel
  • Warranty: 12 Months
  • Delivery Time: About 2-8 working days after receiving payment
Airbag Parameters
Cover Plate
Top Cover Plate Diameter 287mm
Bottom Cover Plate Diameter 287mm
Air Inlet
Options G1/4; G3/4; G1
Blind Nut
Screw Center Distance Of Top Cover Plate 158.8mm
Screw Center Distance Of Bottom Cover Plate 158.8mm
Screw And Gas Hole Diameter Of Top Cover Plate 79.4mm
Top Cover Plate Screw (Nut) Tooth 4XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth 4XM8X1.25
Rubber Bellow
Rubber Bellow MAX Diameter 385mm
The Working Stroke MAX 175mm to MIN 51mm
Maximum Height 175mm
Minimum Height 51mm
Compression Height 124mm
OEM Numbers
  • Contitech FS530-11
  • Contitech FS 530-11
  • Contitech FS530-11 CI
  • Contitech FS 530-11 CI
Vibration Isolation - Dynamic Characteristic Values
Pressure P bar 3 4 5 6 7 8 Vol V(I)
Force(Load) KN 15.2 20.1 26.5 31.6 36.9 42.2 10
Spring Rate N/mm 397 500 608 710 813 915
Natural Frequenz f0 Hz 2.6 2.5 2.4 2.4 2.3 2.3
Pressure P bar 3 4 5 6 7 8 Vol V(I)
height H(mm) 150 14.3 19 25 30 35 40 10
130 17.8 23.7 30.5 36.3 42.7 49.1 9.4
110 20.6 27.4 34.8 41.6 49 56 8.4
90 22.8 30 38.1 46 53.9 61.6 7.1
70 24.3 32 41.2 48.8 57.4 65.5 5.3
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator 0 FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator 1
