| उत्पत्ति के प्लेस: | ग्वांगडोंग, चीन |
| ब्रांड नाम: | GUOMAT |
| प्रमाणन: | ISO/TS16949:2009 |
| मॉडल संख्या: | G7108 |
| न्यूनतम आदेश मात्रा: | 6pcs |
|---|---|
| मूल्य: | $29.9-39.9/pc |
| पैकेजिंग विवरण: | मजबूत कार्टन बॉक्स या ग्राहकों की जरूरत के रूप में |
| प्रसव के समय: | 2-8 काम के दिन |
| भुगतान शर्तें: | एल/सी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 1000pcs/सप्ताह |
| माल का प्रकार: | एयर स्प्रिंग/एयर बैग/एयर बैल | स्थिति: | 100% ब्रांड नया |
|---|---|---|---|
| समारोह: | झटका कम करना | परिवहन पैकेज: | डिब्बों |
| एचएस कोड: | 8708809000 | गारंटी: | 12 महीने |
| प्रकार: | गैस से भरे | पत्तन: | गुआंगज़ौ |
| प्रमुखता देना: | Cabin air spring replacement,Goodyear suspension rubber bellows,Cab air shock absorber |
||

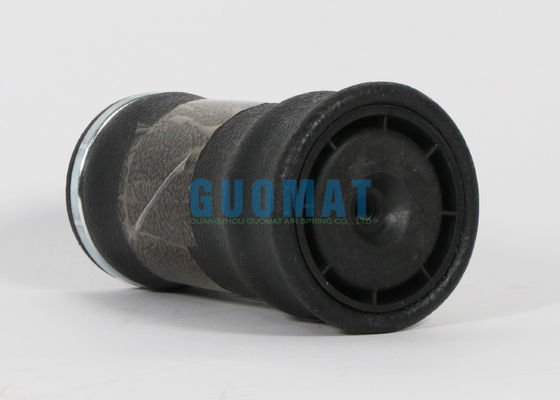

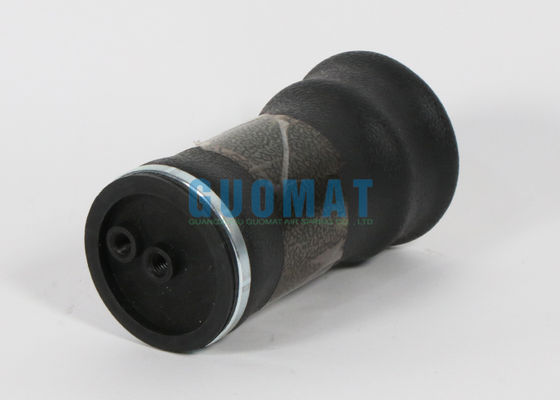

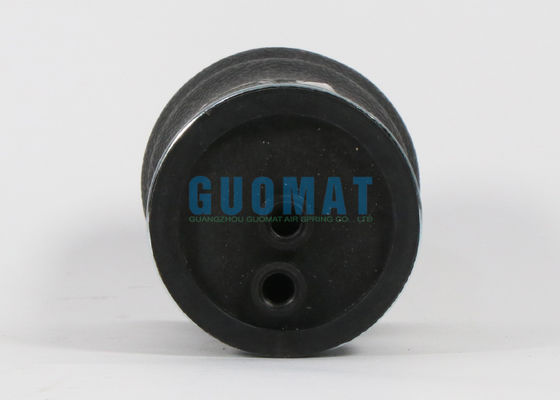

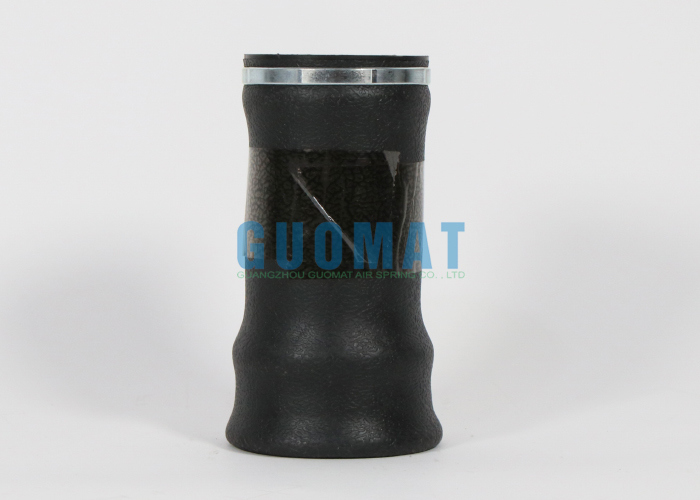

Cabin Air Spring W02-358-7108 Suspension Rubber Bellows 1S5-057 Goodyear Replacement
High-quality replacement air spring designed for Freightliner Mack trucks, manufactured with imported natural rubber for durability and performance.
| Firestone W02-358-7108 | Firestone W02 358 7108 |
| Firestone W023587108 | Firestone WO2-358-7108 |
| Firestone WO2 358 7108 | Firestone WO23587108 |
| Goodyear 1S5-057 | Goodyear 1S 5-057 |
| Goodyear 1S5 057 | Goodyear 1S5057 |
| MANUFACTURING 1102-0075(NAV.) | MILSCO 07067A |
| Specification | Value |
|---|---|
| Threaded Hole | 3/8-16 UNC |
| Air Fitting | 1/8 NPT |
| Top Cover Diameter | 71.5mm |
| Maximum Outside Diameter | 130mm |
| Base Diameter | 74mm |
| Base Height | 38mm |
| Maximum Height | 248mm |
| Minimum Height | 61mm |
| Stage | Step | Key Operations/Precautions |
|---|---|---|
| Preparation and Safety | 1. Lifting and fixing cab | [Core Safety] After using a dedicated lift to raise the cab, it must be immediately supported at the load-bearing structure with a sturdy safety bracket. It is strictly forbidden to rely solely on the lift to bear the load. |
| 2. Relieve system pressure | Disconnect the air line connector from the old air bag and release the internal air pressure. | |
| 3. Disconnect | Disconnect the negative battery terminal; if necessary, tag and move any wiring or lines that are in the way. | |
| Dismantle old parts | 4. Locating and disconnecting gas lines | Locate the air spring under the rear of the cab and disconnect its air line. |
| 5. Remove the fixing bolts | Use appropriate tools to remove the upper and lower fixing bolts. If they are rusted, use lubricant and do not use brute force. | |
| 6. Remove old parts and inspect | Remove the old airbag and check whether the mounting bracket and stop block are cracked or damaged. | |
| Install new parts | 7. Check new parts | Confirm that the new air spring is of the correct model and has no visible damage from transportation. |
| 8. Initial positioning | Place the new, uninflated airbag in the installation location. Do not inflate it before securing it. | |
| 9. Connection and fastening | First screw in the new bolts by hand to ensure accurate alignment, and finally use a torque wrench to tighten them according to the value specified in the maintenance manual. | |
| Recovery and testing | 10. Connect the gas line and restore | Connect the air lines securely (make sure you hear a "click") and reassemble all wiring harnesses and components. |
| 11. Remove the bracket and connect the battery | After confirming that all work is completed, remove the safety bracket and connect the negative terminal of the battery. | |
| 12. Startup and leak detection | Start the engine and observe the airbag inflating to the working height. Check all joints for leaks with soapy water. | |
| 13. Functional testing | Take a short test drive to feel whether the cab stability and shock absorption effect have returned to normal. |
