| उत्पत्ति के प्लेस: | ग्वांगडोंग, चीन |
| ब्रांड नाम: | GUOMAT |
| प्रमाणन: | ISO/TS16949, ISO9001 |
| मॉडल संख्या: | 3B4.5X3P |
| न्यूनतम आदेश मात्रा: | 5 |
|---|---|
| मूल्य: | US$149.9-169.9/PC |
| पैकेजिंग विवरण: | मजबूत कार्टन बॉक्स या ग्राहकों की आवश्यकता के रूप में |
| प्रसव के समय: | 5-8 कार्य दिवस |
| भुगतान शर्तें: | एल/सी, डी/ए, डी/पी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 1000pcs/सप्ताह |
| स्थिति: | एकदम नया | मॉडल नाम: | औद्योगिक हवाई वसंत |
|---|---|---|---|
| नमूना: | उपलब्ध | समारोह: | झटका कम करना |
| प्रकार: | गैस से भरे | सामग्री: | स्टेनलेस स्टील + रबर |
| धौंकनी संख्या: | 4.5X3 / 4½" x 3 | फायरस्टोन: | W01-R58-4035 |
| प्रमुखता देना: | Contitech industrial air spring,4½ x 3 triple convoluted air bellows,industrial air spring with warranty |
||
4½" x 3 Triple Convoluted Type Air Bellows FT 44-15 DI Contitech Industrial Air Spring
Product Introduction
GUOMAT Number: 3B4.5X3P
Warranty: 1 Year
Product Name: Industrial Air Spring
Convolutions: 2
Connection Method: Screw Connection
Material: Rubber and Aluminum
Sample Order: Yes
Delivery Time: 2-8 Working Days
Type: Gas-Filled
Product OEM Number
Dunlop OEM Number: 4.5X2 / 4½" x 3
Dunlop OEM Number: SP2895 / SP 2895
Dunlop Bellow Number: A313380033 / A 3 1338 00 33
Dunlop Bellow Number: A314710B22 / A 3 141 0B 22
Dunlop Assembly Number: PNP 3059 01 08 / PNP30590108
Firetsone OEM Number: W01R584035 / W01 R58 4035 / W01-R58-4035
Contitech OEM Number: FT44-15DI / FT 44-15DI / FT 44-15 DI
Norgren OEM Number: PM/31043 / PM 31043 / PM31043
Product Dimensions
| Maximum Diameter | 125mm |
| Space Required | 140mm |
| Minimum Height | 100mm |
| Maximum Height | 200mm |
| Total Stroke | 100mm |
| Static Height | 145mm |
| Effective Area at Static Height | 65cm2 |
| Bellows Weight | 1.15kg |
Key Characteristics & Applications
Function: Provides a cushion of air that can support a load, absorb shock, isolate vibration, or provide precise positioning.
Typical Uses:
Industrial Machinery: Vibration isolation for presses, stamping machines, and other equipment.
Vehicle Suspension: Air ride suspension for truck cabs, seats, or trailers.
Material Handling: Leveling systems for platforms or workstations.
Agricultural Equipment: Suspension on tractors or implements.
Replacement/Ordering Information
If you are replacing this part, it is crucial to obtain the complete part number. You should also confirm:
Physical Dimensions: Consult the datasheet for the exact outside diameter, height (retracted and extended), and bolt hole configuration on the direct injection mount.
Pressure Range: Confirm the minimum and maximum operating pressure (PSI or Bar) required for your application.
Operating Environment: Consider factors such as temperature and exposure to oil or chemicals.

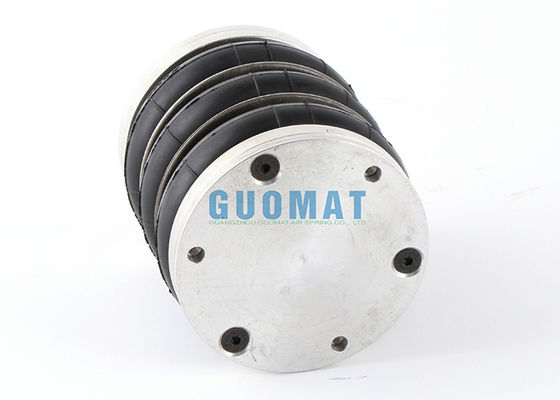

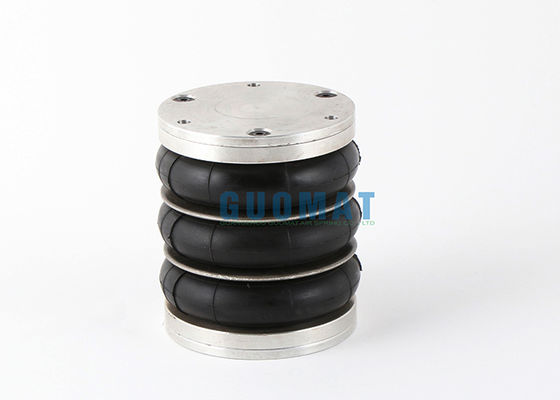

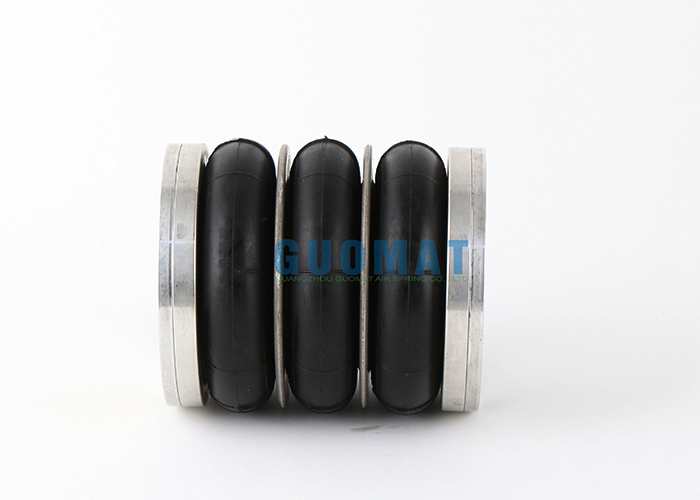

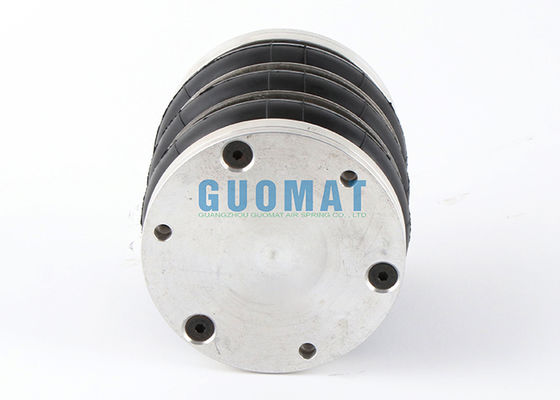

Product Image
