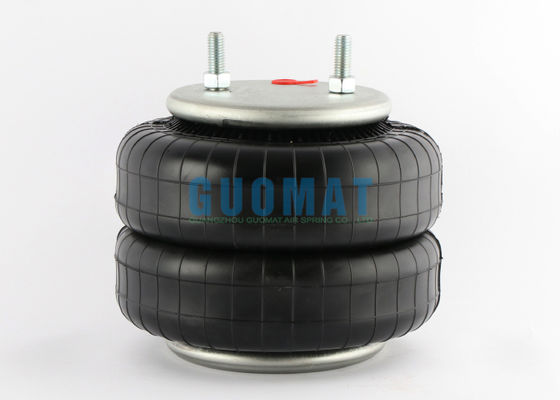

W01-358-7424 Firestone industrial Air Spring FD 330-22 327 Contitech Convolute Air Bags

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	GUOMAT
प्रमाणन:	ISO/TS16949:2009
मॉडल संख्या:	2B7424

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	6pcs
मूल्य:	$59.9-69.9/pc
पैकेजिंग विवरण:	मजबूत कार्टन बॉक्स या ग्राहकों की जरूरत के रूप में
प्रसव के समय:	2-8 काम के दिन
भुगतान शर्तें:	एल/सी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता:	1000pcs/सप्ताह

संपर्क करें

विस्तृत उत्पाद विवरण

हवाई वसंत:	रबर बेलो एयर स्प्रिंग	सामग्री:	रबर + स्टील
गारंटी:	12 महीने	गुणवत्ता:	100 % परीक्षण किया
प्रकार:	गैस से भरे	सेवा:	ओईएम
पैकेजिंग:	दफ़्ती	गुडइयर:	2B12-300
प्रमुखता देना:	Firestone industrial air spring , Contitech convolute air bags , FD 330-22 air spring

W01-358-7424 Firestone industrial Air Spring FD 330-22 327 Contitech Convolute Air Bags

Product Information

Product Name	Industrial Air Spring
Warranty	12 Months
Description	Double Convoluted Air Spring Bags
Material	Rubber+Steel
MOQ	10 PCS
Payment	L/C ;T/T ;Western Union;Paypal
Port of Shipment	Huangpu ,Guangzhou
Shippment	By sea, By air, by DHL Fedex

Reference Number/Cross Number

Goodyear OEM Number:	2B12-300, 2B 12-300, 2B12 300, 2B12300
Goodyear Bellows Number:	578923309, 578 92 3 309, 578-92-3-309
Goodyear Top Plate Number:	ASA-92-8-003
Goodyear Bottom Plate Number:	ASA-92-6-001
Contitech Cross Number:	64283, FD330-22 327, FD 330-22 327, FD330-22327
Firestone Cross Number:	7424, W01-358-7424, W01 358 7424, W013587424

Compatible Part Numbers

AUTOMANN	ABSP2B22R-7424
DAYTON	354-7424
HDA	PMABG-7424B
INT'L/NAVISTAR	554785C1
LOAD GUARD	SC2024
NEWAY	905-57-014 TC-144-2
R&S TRUCK& BODY	1090215
SAUR AXLES	P10-755
TAURUS	AS214-7424
TRIANGLE	4327
TRP	AS74240
WATSON& CHALIN	AS-0009

Technical Specifications

Maximum height: 10.9 inches

Minimum height: 3.4 inches

Cover diameter: 9.00 inches

Center distance between screws: 6.2 inches

Center distance between screws and air holes: 2.88 inches

Air Spring Applications in Agricultural Seeders

1. Improved Seeding Quality

Depth Consistency: This is the most critical benefit, directly leading to uniform and strong seedling emergence, laying the foundation for high yields.
Uniform Seedling Emergence: Consistent seed depth means the seeds are exposed to similar soil temperature and humidity conditions, resulting in concentrated seedling emergence and uniform crop growth, facilitating subsequent field management.

2. Improved Operational Efficiency

The operator no longer needs to frequently stop to manually adjust downforce, allowing for higher speeds, making it particularly suitable for large-scale farms.
The risk of rework due to poor seeding quality (such as overseeding or missed seeding) is reduced.

3. Reduced Operating Costs

Reduced Tractor Fuel Consumption: Precise pressure control avoids unnecessary over-pressure and reduces traction resistance.
Reduced Soil Compaction: Avoiding excessive soil compaction promotes soil health and water penetration.
Extended Implement Life: Cushioning and shock absorption protect delicate seeder components.

4. Enhanced Operator Comfort and Intelligent Operation

The operator can easily adjust downforce via the touchscreen, significantly reducing labor intensity.
It can be integrated with GPS and automatic navigation systems to achieve variable downforce control based on prescription maps, which is an important component of precision agriculture.

Product Images
